Smooth-bore Micrometer Heads

These high-quality micrometers feature a smooth-bore, unthreaded mounting shank with industry standard dimensions for use with slip-in, clamp style mounts like those found on New Focus stages.

Unthreaded mounting shank

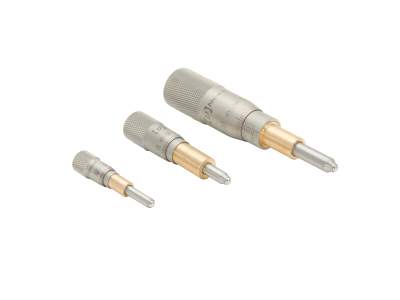

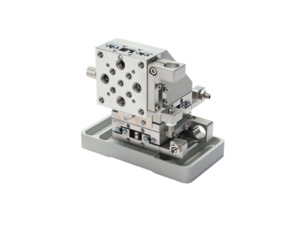

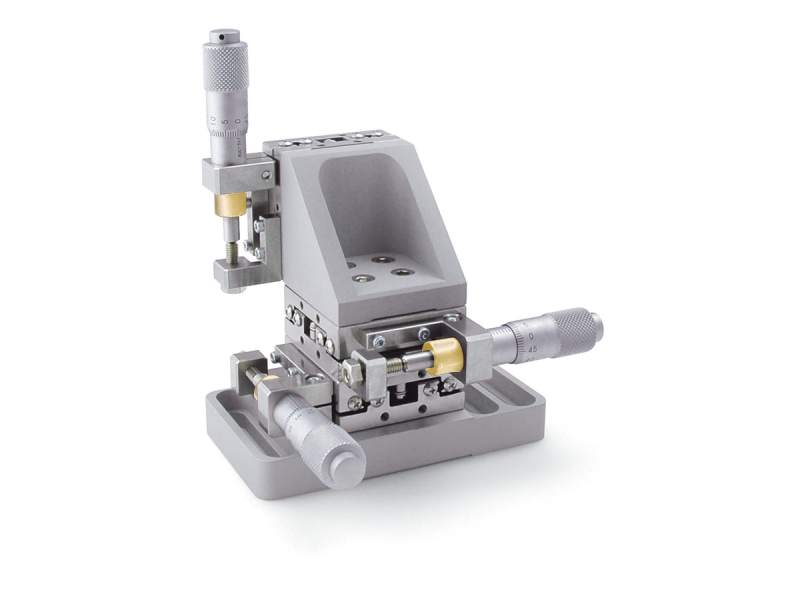

Compatible with New Focus 9061, 9062, 9063 stages
Designed for clamp-style or adhesive mounting

See All Features

Show Filters:

Showing 5 of 5 total products

Compatibility:

Description	Compatibility	Travel Range	Adjustment Screw Thread	Graduations	Axial Load Capacity	Sensitivity	Avail.	Price
9351Micrometer, 0.25 in. Travel, Unthreaded, 100 TPI High-Resolution	UNIVERSAL	6.35 mm	100 TPI	2.54 µm	40 N	0.5 µm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$154
9354Micrometer, 0.25 in. Travel, Unthreaded, For 9061 Series Stages	UNIVERSAL	6.35 mm	50.8 TPI	10 µm	30 N	1.0 µm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$140
9355Micrometer, 0.5 in. Travel, Unthreaded, For 9062 Series Stages	UNIVERSAL	12.7 mm	50.8 TPI	10 µm	40 N	1.0 µm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$140
9356Micrometer, 1.0 in. Travel, Unthreaded, For 9063 Series Stages	UNIVERSAL	25.4 mm	50.8 TPI	10 µm	90 N	1.0 µm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$129
SM-06Micrometer, 6 mm Travel, Unthreaded, Vernier	UNIVERSAL	6.1 mm	50.8 TPI	10 µm	40 N	1.0 µm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$138

Specifications

Models
Travel Range	6.1 mm	6.35 mm	6.35 mm	12.7 mm	25.4 mm
Adjustment Screw Thread	50.8 TPI	100 TPI	50.8 TPI	50.8 TPI	50.8 TPI
Drive Screw Pitch	0.5 mm	0.254 mm	0.5 mm	0.5 mm	0.5 mm
Sensitivity	1.0 µm	0.5 µm	1.0 µm	1.0 µm	1.0 µm
Graduations	10 µm	2.54 µm	10 µm	10 µm	10 µm
Axial Load Capacity	40 N	40 N	30 N	40 N	90 N
Mounting	9.5 mm Shank	8.7 mm Shank	6.3 mm Shank	9.5 mm Shank	9.5 mm Shank

Features

High-Resolution Micrometer Head

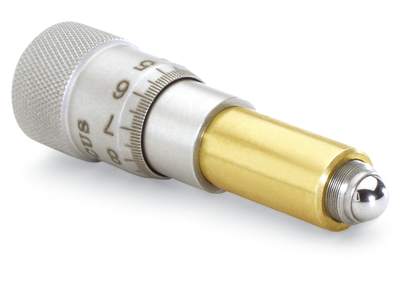

The 9351 high-resolution 100-TPI micrometer screw features a smooth-bore unthreaded mounting shank and is intended for incorporation in OEM application. The micrometer mounting shank is designed for bonding into 0.345 +/-0.001 inch (8.8 +/-0.03 mm) diameter holes.

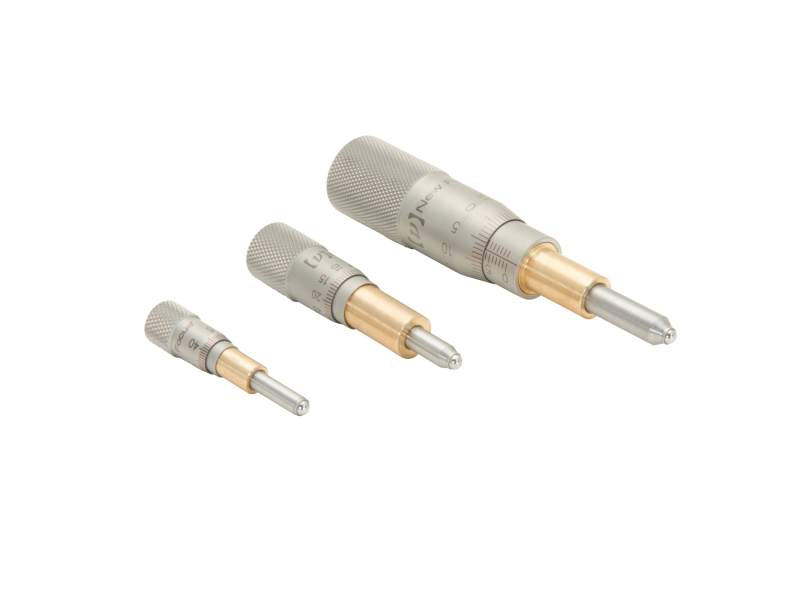

Compatible with Gothic Arch Stages

The 9354 offers 0.25 inch travel and is ideal for New Focus 9061 series linear stages. The 9355 offers 0.5 inch travel and is ideal for New Focus 9062 series linear stages. The 9356 offers 1.0 inch travel and is ideal for New Focus 9063 series linear stages.
