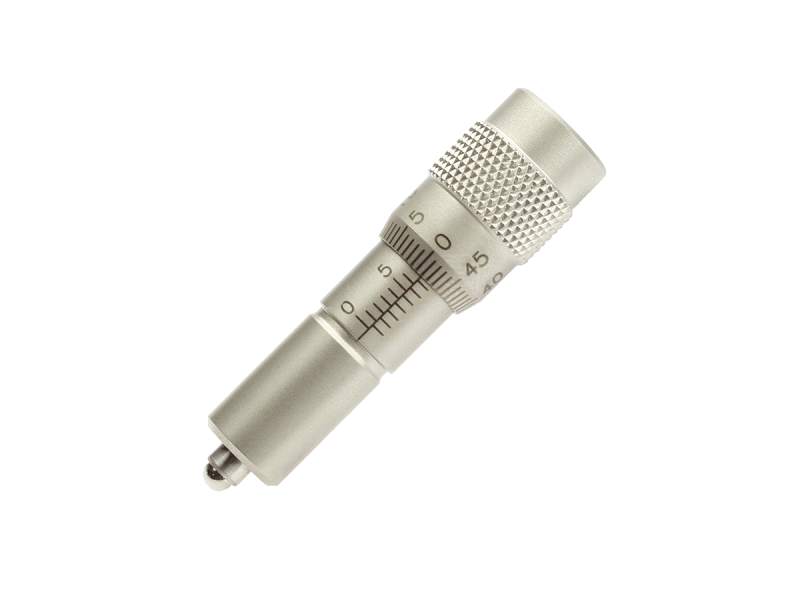

Micrometer, 6 mm Travel, Unthreaded, Vernier

Model: SM-06

$131

In Stock

Compare

Add to List

Product Series Overview

Smooth-bore Micrometer Heads

The SM-06 Smooth Bore Micrometer Head is a standard drive for most Newport stages, and our most popular manual actuator. The SM-06 has a 6 mm travel range and a 9 lb load capacity. SM Series micrometers have 0.5 mm pitch (50.8 TPI) threads and read directly in increments of 10 µm.

Specifications

Technical Specs

Type

Vernier Micrometer
Travel Range

6.1 mm
Adjustment Screw Thread

50.8 TPI
Drive Type

Knob
Graduations

10 µm
Axial Load Capacity

40 N

Vernier

1 µm
Sensitivity

1.0 µm
Drive Screw Pitch

0.5 mm
Mounting

9.5 mm Shank

Type

Vernier Micrometer
Travel Range

6.1 mm
Adjustment Screw Thread

50.8 TPI
Drive Type

Knob
Graduations

10 µm
Axial Load Capacity

40 N

Vernier

1 µm
Sensitivity

1.0 µm
Drive Screw Pitch

0.5 mm
Mounting

9.5 mm Shank

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

SM-06-S (71.4 kB, PDF)

Other

SM-06 RoHS Certificate (280 kB, PDF)

Related Products

Customers Who Bought This Item Also Bought

Description	Compatibility	Avail.	Price
RS65 Manual Rotation Stage, Aperture , 2.65 in. Diameter, 10° Fine, 6-32 and 1/4-20	IMPERIAL	In Stock	$565
SM-25 Vernier Micrometer, 25 mm Travel, 23 lb. Load Capacity, 50.8 TPI	UNIVERSAL	In Stock	$158
SM-13 Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI	UNIVERSAL	In Stock	$100
DS65-XY XY Linear Stage, Dovetail, 1.0 in. Travel, 2.56 x2.56 in.	IMPERIAL	In Stock	$425
DS65-X Manual Linear Stage, Compact, Dovetail, 1.0 in., 2.56x2.56 x 1.11 in.	IMPERIAL	In Stock	$216

Similar

Description	Compatibility	Avail.	Price
AJS100-02H Hex Adjustment Screw, 100 TPI, 6.35 mm Travel, End Lock	UNIVERSAL	In Stock	$38
DM11-5 Differential Micrometer Head, 5.1 mm Coarse, 0.1 mm Fine, 6.6 lb. Load	UNIVERSAL	In Stock	$413
BM11.5 Micrometer Head, Standard Resolution, 5 mm Travel, 9 lb. Load	UNIVERSAL	In Stock	$196
HR-6 Micrometer Head, High Resolution, 0.5 µm Sensitivity, 6 mm Travel	UNIVERSAL	In Stock	$236
DM-6L Lockable Differential Micrometer, 6 mm Coarse, 0.2 mm Fine, 11 lb. Load	UNIVERSAL	In Stock	$561

Compatible

Description	Compatibility	Avail.	Price
423 Linear Stage, High-Performance, Low-Profile, 1.0 in. Travel, 1/4-20	IMPERIAL	In Stock	$338
426 Manual Linear Stage, Crossed-Roller Bearings, 1.0 in. Travel, 1/4-20	IMPERIAL	In Stock	$652
433 Linear Stage, High-Performance, Low-Profile, 1.81 in. Travel, 1/4-20	IMPERIAL	In Stock	$403
436 Manual Linear Stage, Crossed-Roller Bearings, 2.0 in. Travel, 1/4-20	IMPERIAL	In Stock	$926
436A Manual Linear Stage, Crossed-Roller Bearings, Aperture, 2.0 in. Travel, 1/4-20	IMPERIAL	In Stock	$960
