Compare Model Drawings, CAD & Specs Travel Range Adjustment Screw Thread Drive Type Axial Load Capacity Lock Availability Price
9311
$36
In Stock
 9311 6.9 mm 1/4-80 Knob 90 N No Lock
In Stock
 $36
9311-K
$36
In Stock
 9311-K 6.9 mm 1/4-80 Hex 90 N No Lock
In Stock
 $36
9312
$36
In Stock
 9312 9.6 mm 1/4-80 Knob 90 N No Lock
In Stock
 $36
9312-K
$37
In Stock
 9312-K 9.6 mm 1/4-80 Hex 90 N No Lock
In Stock
 $37
9366
$49
In Stock
 9366 9.6 mm 1/4-100 Knob 90 N Side Lock
In Stock
 $49
9376
$41
In Stock
 9376 9.6 mm 1/4-100 Knob 90 N No Lock
In Stock
 $41
9376-K
$41
In Stock
 9376-K 9.6 mm 1/4-100 Hex 90 N No Lock
In Stock
 $41
9301
$43
In Stock
 9301 12.7 mm 1/4-80 Knob 90 N Side Lock
In Stock
 $43
9301-K
$45
In Stock
 9301-K 12.7 mm 1/4-80 Hex 90 N Side Lock
In Stock
 $45
9313
$36
In Stock
 9313 12.7 mm 1/4-80 Knob 90 N No Lock
In Stock
 $36
9313-K
$37
In Stock
 9313-K 12.7 mm 1/4-80 Hex 90 N No Lock
In Stock
 $37
9321
$41
In Stock

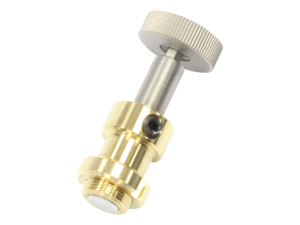

 9321 12.7 mm 1/4-80 Knob 90 N Side Lock
In Stock
 $41
9367
$53
In Stock
 9367 12.7 mm 1/4-100 Knob 90 N Side Lock
In Stock
 $53
9377
$41
In Stock
 9377 12.7 mm 1/4-100 Knob 90 N No Lock
In Stock
 $41
9377-K
$41
In Stock
 9377-K 12.7 mm 1/4-100 Hex 90 N No Lock
In Stock
 $41
9304
$47
In Stock

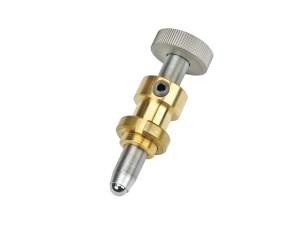

 9304 19.1 mm 1/4-80 Knob 90 N Side Lock
In Stock
 $47
9304-K
$47
In Stock
 9304-K 19.1 mm 1/4-80 Hex 90 N Side Lock
In Stock
 $47
9317
$41
6 Weeks

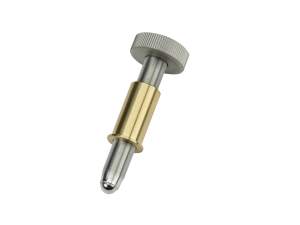

 9317 19.1 mm 1/4-80 Knob 90 N No Lock
6 Weeks
 $41
9317-K
$41
In Stock

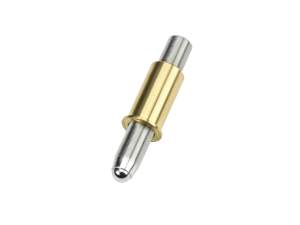

 9317-K 19.1 mm 1/4-80 Hex 90 N No Lock
In Stock
 $41
9368
$49
In Stock
 9368 19.1 mm 1/4-100 Knob 90 N Side Lock
In Stock
 $49
9378
$45
In Stock
 9378 19.1 mm 1/4-100 Knob 90 N No Lock
In Stock
 $45
9378-K
$45
In Stock
 9378-K 19.1 mm 1/4-100 Hex 90 N No Lock
In Stock
 $45
9302
$43
In Stock
 9302 25.4 mm 1/4-80 Knob 90 N Side Lock
In Stock
 $43
9302-K
$43
In Stock

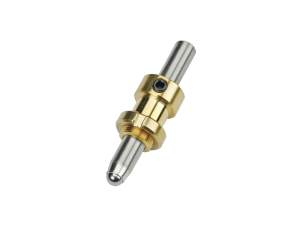

 9302-K 25.4 mm 1/4-80 Hex 90 N Side Lock
In Stock
 $43
9314
$36
In Stock

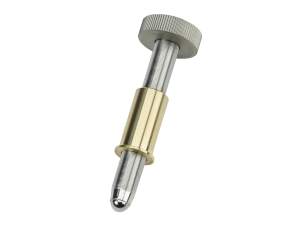

 9314 25.4 mm 1/4-80 Knob 90 N No Lock
In Stock
 $36
9314-K
$37
In Stock

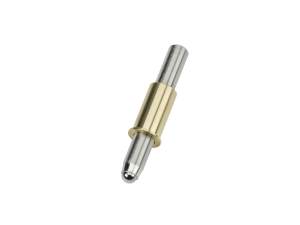

 9314-K 25.4 mm 1/4-80 Hex 90 N No Lock
In Stock
 $37
9369
$49
Contact Us
 9369 25.4 mm 1/4-100 Knob 90 N Side Lock
Contact Us
 $49
9379
$45
In Stock
 9379 25.4 mm 1/4-100 Knob 90 N No Lock
In Stock
 $45
9379-K
$45
In Stock
 9379-K 25.4 mm 1/4-100 Hex 90 N No Lock
In Stock
 $45
9305
$47
In Stock
 9305 38.1 mm 1/4-80 Knob 90 N Side Lock
In Stock
 $47
9305-K
$47
In Stock

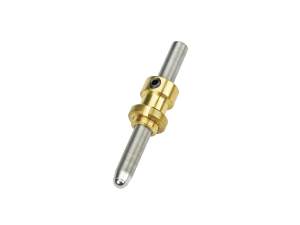

 9305-K 38.1 mm 1/4-80 Hex 90 N Side Lock
In Stock
 $47
9318
$41
In Stock
 9318 38.1 mm 1/4-80 Knob 90 N No Lock
In Stock
 $41
9318-K
$41
In Stock

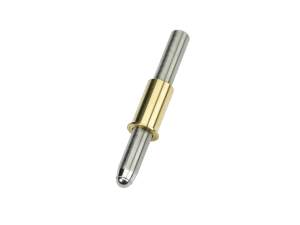

 9318-K 38.1 mm 1/4-80 Hex 90 N No Lock
In Stock
 $41
9303
$47
In Stock

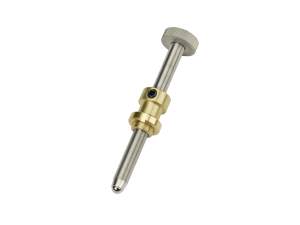

 9303 50.8 mm 1/4-80 Knob 90 N Side Lock
In Stock
 $47
9303-K
$47
In Stock

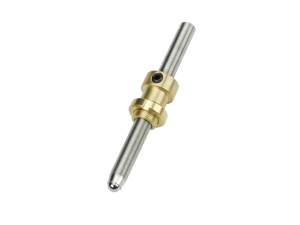

 9303-K 50.8 mm 1/4-80 Hex 90 N Side Lock
In Stock
 $47
9316
$41
In Stock

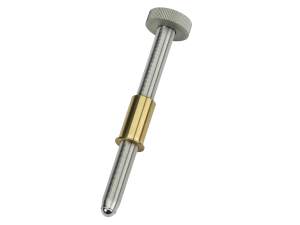

 9316 50.8 mm 1/4-80 Knob 90 N No Lock
In Stock
 $41
9316-K
$41
In Stock
 9316-K 50.8 mm 1/4-80 Hex 90 N No Lock
In Stock
 $41

Features

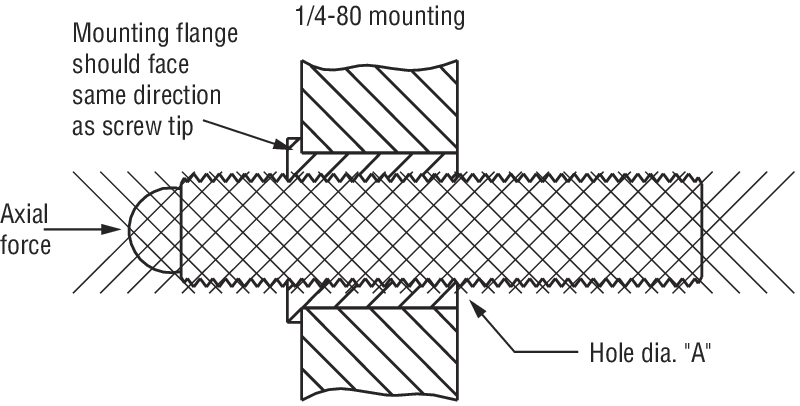

Installation of Thread Matched Adjustment Screws and Nuts

New Focus precision nuts are designed for easy installation in your equipment. We recommend using an adhesive when mounting the nut in a slip-fit hole. Do not press-fit the nut or it may distort. It is important to mount the nut such that any axial force is taken up by the mounting flange. Axial force should not be carried by the adhesive. We recommend using Loctite® Product 609 anaerobic retaining adhesive. It is essential that both surfaces be completely free of grease for proper curing of the adhesive.

Innovative Manufacturing Process for Long-term Stability

Outstanding positional and thermal performance is achieved using a proprietary assembly process. This assembly process uses tightly toleranced subcomponents and the ideal amount of lubrication. The small amount of lubrication is optimized to mitigate the effects of hysteresis and long-term creep caused by lubricant migration.

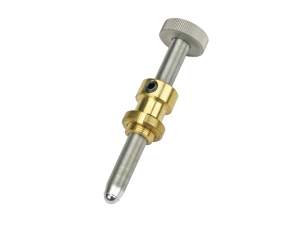

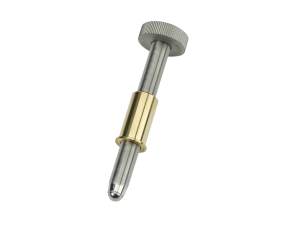

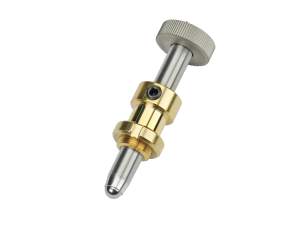

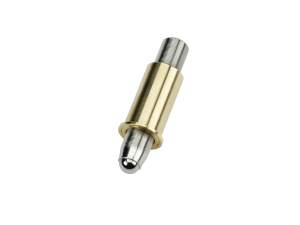

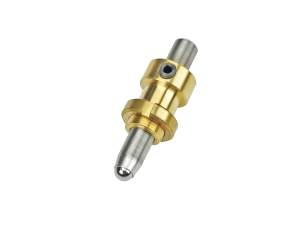

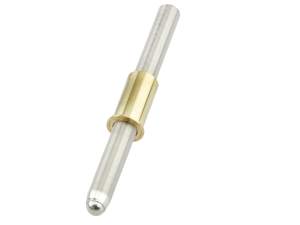

Locking and Non-Locking Versions

Thread-Matched Adjustment Screws are available in both locking and non locking versions. Use the locking version to discourage unwanted adjustment, use the non-locking version when a more compact screw is needed.
