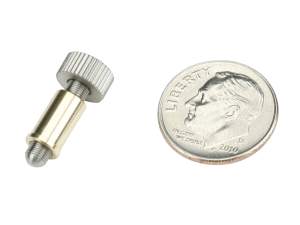

Tiny Adjustment Screws

At nearly half the size of standard adjustment screws, these screws feature very smooth movement, high precision, and exceptional long-term stability.

80 or 100 TPI thread pitch
45% smaller than standard adjustment screws
Machined-in spherical tip
Ideal for use in your miniature mounts and stages
Manufactured to the tightest tolerances

See All Features

Show Filters:

Showing 10 of 24 total products

Compatibility:

Description	Compatibility	Travel Range	Adjustment Screw Thread	Drive Type	Axial Load Capacity	Lock	Avail.	Price

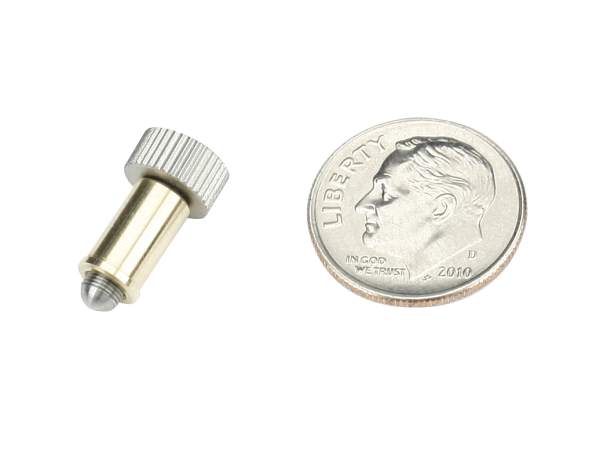

9341NFAdjustment Screw, Tiny Knob, 2.0 mm Travel, Ball Tip, 6-80	UNIVERSAL	2.0 mm	6-80	Knob	35 N	No Lock	In Stock	$38
9341-KAdjustment Screw, Tiny, Hex, 2.0 mm Travel, Ball Tip, 6-80	UNIVERSAL	2.0 mm	6-80	Hex	35 N	No Lock	In Stock	$39
9342Adjustment Screw, Tiny Knob, 5.1 mm Travel, Ball Tip, 6-80	UNIVERSAL	5.1 mm	6-80	Knob	35 N	No Lock	In Stock	$38

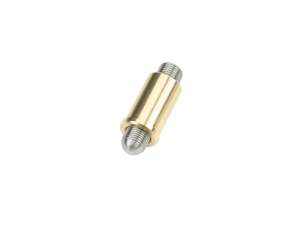

9342-KAdjustment Screw, Tiny, Hex, 5.1 mm Travel, Ball Tip, 6-80	UNIVERSAL	5.1 mm	6-80	Hex	35 N	No Lock	In Stock	$39

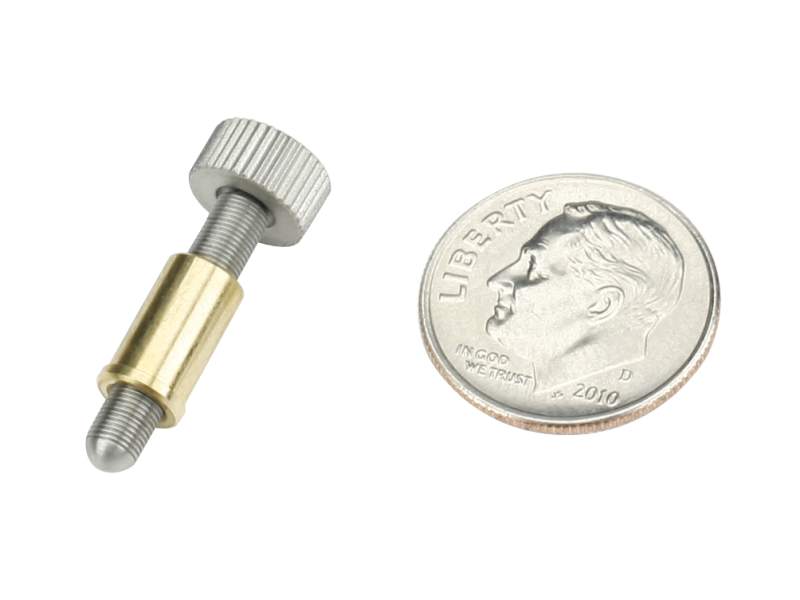

9345Adjustment Screw, Tiny Knob, 9.6 mm Travel, Ball Tip, 6-80	UNIVERSAL	9.6 mm	6-80	Knob	35 N	No Lock	Contact Us	$38

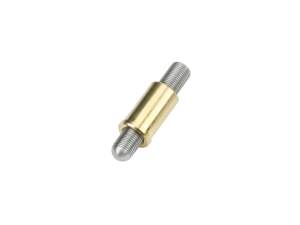

9345-KAdjustment Screw, Tiny, Hex, 9.6 mm Travel, Ball Tip, 6-80	UNIVERSAL	9.6 mm	6-80	Hex	35 N	No Lock	4 Weeks	$38
9371Adjustment Screw, Tiny Knob, 9.6 mm Travel, Ball Tip, 6-100	UNIVERSAL	9.6 mm	6-100	Knob	35 N	No Lock	In Stock	$45
9371-KAdjustment Screw, Tiny, Hex, 9.6 mm Travel, Ball Tip, 6-100	UNIVERSAL	9.6 mm	6-100	Hex	35 N	No Lock	In Stock	$45
9372Adjustment Screw, Tiny Knob, 11.4 mm Travel, Ball Tip, 6-100	UNIVERSAL	11.4 mm	6-100	Knob	35 N	No Lock	2 Weeks	$45
9372-KAdjustment Screw, Tiny, Hex, 11.4 mm Travel, Ball Tip, 6-100	UNIVERSAL	11.4 mm	6-100	Hex	35 N	No Lock	In Stock	$45

Show All

Features

Tiny Adjustment Screws are Really Small

These tiny screws are made to provide precise positioning in areas where there is no space to spare. They are great for building miniature optical mounts or positioners requiring up to 1 inch of travel. We use these same screw sets in our Pint-sized mounts, so you know you’re getting the best quality.

Installation of Tiny Screws

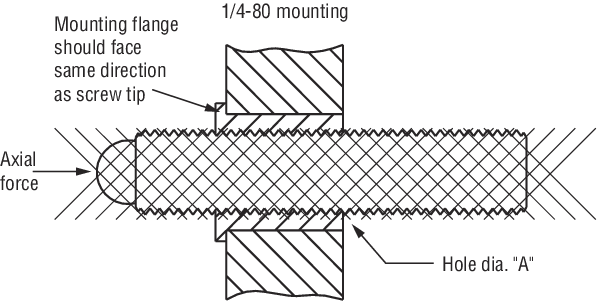

New Focus Tiny Screws are designed for easy installation in your equipment. We recommend using an adhesive when mounting the nut in a slip-fit hole. Do not press-fit the nut or it may distort. It is important to mount the nut such that any axial force is taken up by the mounting ﬂange. Axial force should not be carried by the adhesive. We recommend using Loctite® Product 609 anaerobic retaining adhesive. It is essential that both surfaces be completely free of grease for proper curing of the adhesive. The mounting hole diameter "A" is 0.201 +/-0.001 in. (5.1 +/-0.03 mm).

Innovative Manufacturing Process

Tiny adjustment screws are built using the same proprietary process as our 1/4-80 screw sets, these screws feature tight tolerances and no excess grease, resulting in actuators with very smooth movement, high precision, and exceptional long-term and thermal stability.
