Compare Model Drawings, CAD & Specs Axes of Travel Thread Type Availability Price
Manual Linear Stage, Low Profile, Gothic-Arch Bearings, 12.7 mm, 8-32 & 1/4-20
$346
In Stock
X 2-56, 8-32, and 1/4-20
In Stock

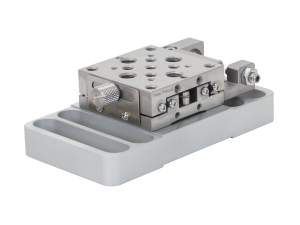

Manual Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, 8-32 & 1/4-20
$404
In Stock
X 2-56, 8-32, and 1/4-20
In Stock

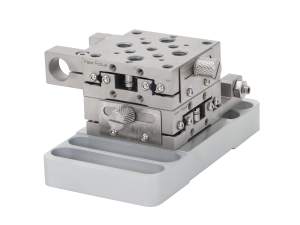

XY Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, 8-32 & 1/4-20
$749
5 Weeks
X, Y 2-56, 8-32, and 1/4-20
5 Weeks

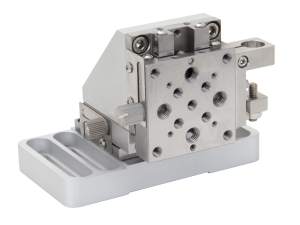

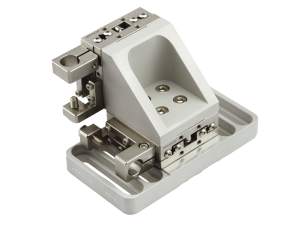

XZ Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, 8-32 & 1/4-20
$807
In Stock
X, Z 2-56, 8-32, and 1/4-20
In Stock

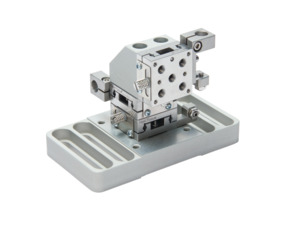

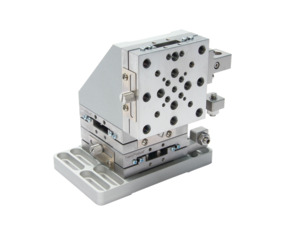

XYZ Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, 8-32 & 1/4-20
$1,138
In Stock
X, Y, Z 2-56, 8-32, and 1/4-20
In Stock
Manual Linear Stage, Low Profile, Gothic-Arch Bearings, 12.7 mm, M4 and M6
$346
In Stock
X M2, M4 and M6
In Stock
Manual Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, M4 and M6
$404
In Stock
X M2, M4 and M6
In Stock
XY Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, M4 and M6
$749
In Stock
X, Y M2, M4 and M6
In Stock
XZ Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, M4 and M6
$807
In Stock
X, Z M2, M4 and M6
In Stock
XYZ Linear Stage, Gothic-Arch Bearings, 12.7 mm Travel, M4 and M6
$1,138
In Stock
X, Y, Z M2, M4 and M6
In Stock

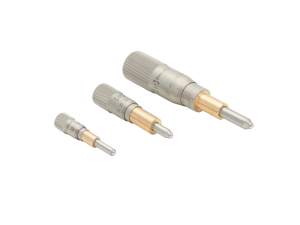

Actuators are not included. Please see specifications for recommended actuators.

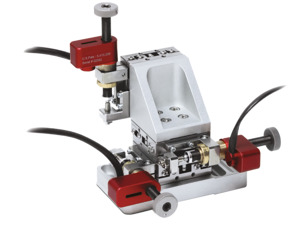

We also offer Pre-Configured versions with actuators included.

Specifications

Features

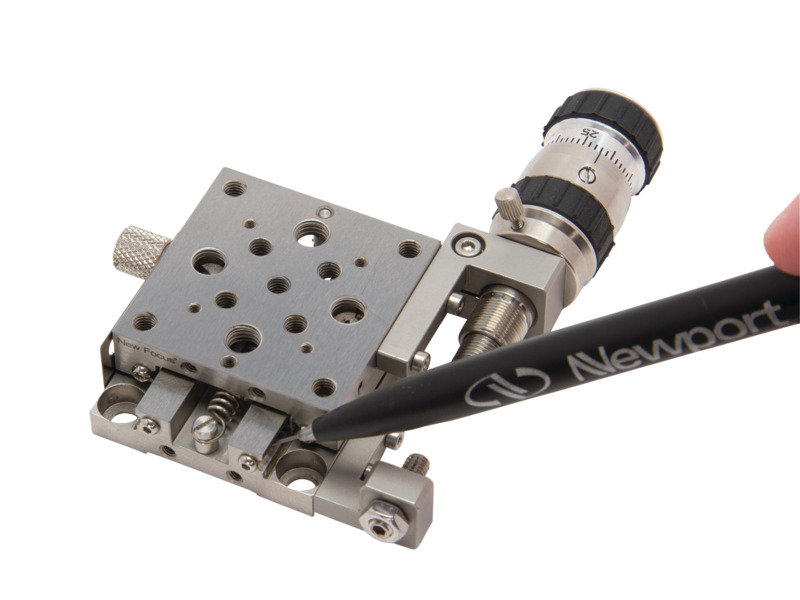

Machined Bearing Ways

The unique bearing design of these Gothic Series translation stages offer the ultimate stability in temperature-fluctuating environment. Unlike the multicomponent design of standard stages, which can loose their preload properties over time, Gothic Series bearing ways are machined directly out of the stage platform.

More Bearing Contact Area for Higher Loads

The gothic arch contact profile for the stainless steel ball bearings offers increased contact area to reduce bearing stresses, making the stage able to carry higher loads and more resistant to bearing-way damage.

Side Mounted Actuators

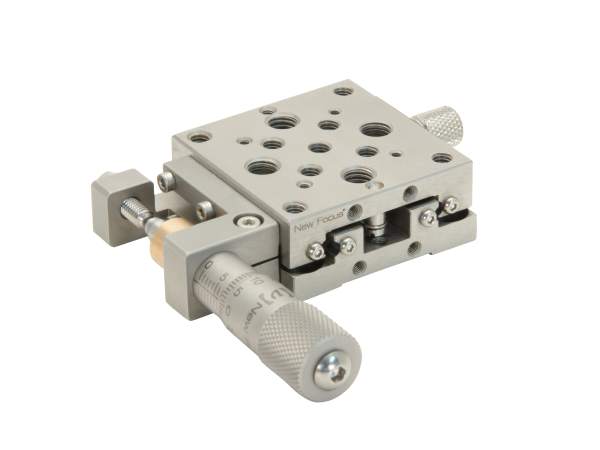

All Gothic series stages have side-mounted actuator clamps, minimizing the final footprint while maintaining a low profile height. These stages can also be stacked for multi-axis translation and include a side-mounted locking mechanism for each axis. Shown is 9062-COM with micrometer.

Configurable for Left-handed

The actuator mounts on the Gothic Series stages can be easily reconfigured for left-handed operation.  The micrometer block is relocated where the push block is and vise versa.  The video shows a micrometer reconfiguration of the 9062-COM stage.

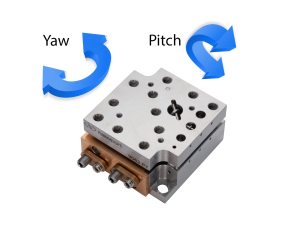

Compatible Pitch and Yaw Stages

We offer compatible Pitch and Yaw Stages to be mounted on these linear stages of matched size for an additional 2 axes of adjustment. Shown here is a 9062-PY Pitch and Yaw stage mounted on a 9062-XY linear stage for complete pitch, yaw, X, and Y adjustment.

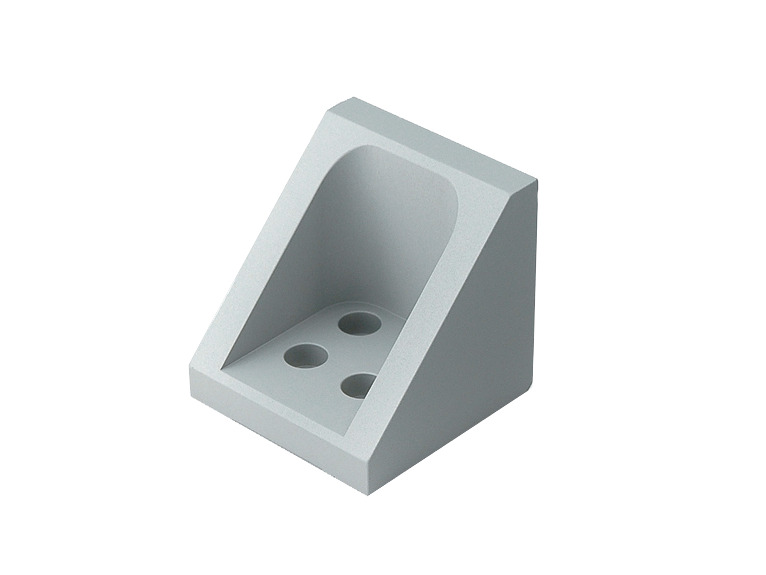

Angle Brackets for Multi-Axis Configurations

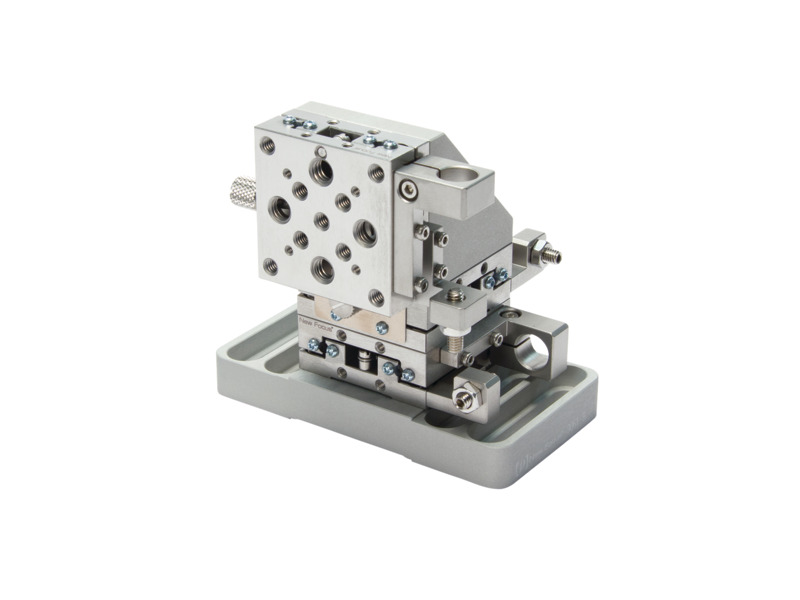

90 degree angle brackets can be used to build XYZ stage stacks like the one shown from single axis stages. Please see the accessory section for more information.
