Baseplate, 9061-M and 9062-M Series Stages, M2

Baseplate, 9061-M and 9062-M Series Stages, M2

Model: 9061-B-M

$73

Show

Compare

Add to List

Product Series Overview

Translation Stage Base Plates, 906x Series

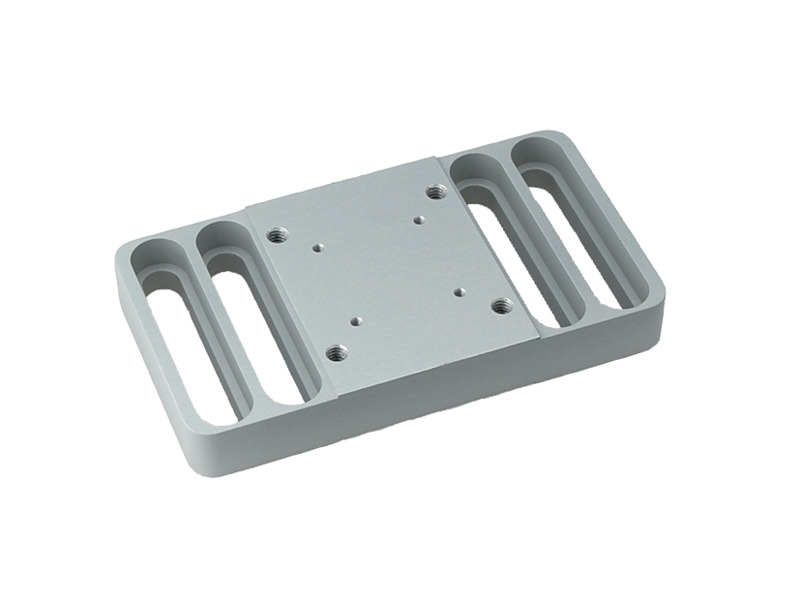

The 9061-B-M Baseplate is used with 9061-M and 9062-M Series gothic-arch stages to create a stage with conventional mounting slots.

Specifications

Technical Specs

Type

Base Plate
Height

12.7 mm
Length

92.1 mm
Width

50.8 mm

Thread Type

M2
Material

Aluminum
Use

9061 & 9062 Series Stage

Type

Base Plate
Height

12.7 mm
Length

92.1 mm
Width

50.8 mm

Thread Type

M2
Material

Aluminum
Use

9061 & 9062 Series Stage

Resources & Downloads

Other

910113_RoHS2021.pdf (691.6 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9061 B RCa-Drawing (97 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		TA-M6Q20-10 Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL		In Stock	$41
		AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL		In Stock	$19.40
		M-SK-A Socket Head Cap Screw Kit, Stainless Steel, M4 & M6, Qty 805	UNIVERSAL		In Stock	$128
		BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL		In Stock	$35
		M-BDK-1 Ball Driver Tool Set, Includes: 1.5, 2, 2.5, 3, 4 & 5 mm Wrenches	METRIC		In Stock	$38

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		9061-XYZ-M XYZ Linear Stage, Gothic-Arch Bearings, 6.5 mm Travel, M4 Thread	METRIC		In Stock	$1,123
		9061-COM-M Manual Linear Stage, Gothic-Arch Bearings, 6.5 mm, M4, No Baseplate	METRIC		In Stock	$354
		9061-A-M Angle Bracket, 9061-M Series Stages, XZ and XYZ Configurations	METRIC		Show	$94
		9061-X-M Manual Linear Stage, Gothic-Arch Bearings, 6.5 mm Travel, M4 Thread	METRIC		In Stock	$410
		9062-A-M Angle Bracket, 9062-M Series Stages, XZ and XYZ Configurations	METRIC		In Stock	$94

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		M-SDS25 Manual Linear Stage, 10 mm Travel, Ball Bearings, M2 and M4 Threads	UNIVERSAL		In Stock	$633
		M-B-1.25 Adaptor Plate, 25x25 mm Stage to 40x40 mm Stage	METRIC		In Stock	$54
		M-SDS25-BK 90 Degree Angle Bracket, M-SDS25, M2 Thread	UNIVERSAL		In Stock	$147
