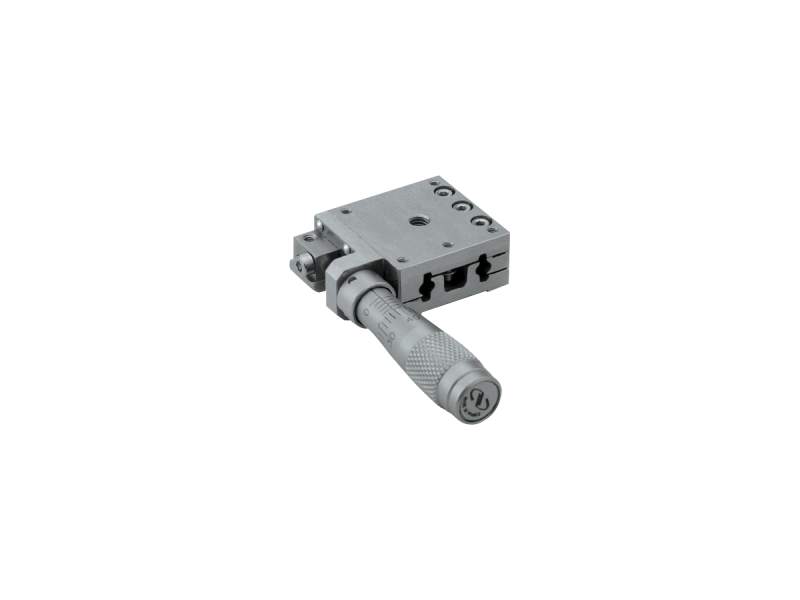

Manual Linear Stage, 10 mm Travel, Ball Bearings, M2 and M4 Threads

Specifications

  • Axes of Travel
    X
  • Maximum Stage Travel
    10 mm
  • Centered Normal Load Capacity
    40 N
  • Vertical Axial Load Capacity
    10 N
  • Graduations
    20 µm
  • Sensitivity
    1 µm
  • Angular Deviation
    Pitch: <200 µrad
    Yaw: <150 µrad
  • Material
    Stainless Steel
  • Bearings
    Single-Row Ball Bearings
  • Drive Location
    Side drive
  • Platform Size
    25 x 25 mm
  • Height
    12 mm
  • Weight
    70 g
  • Thread Type
    M2 and M4
  • Recommended BM Micrometer
    Included
