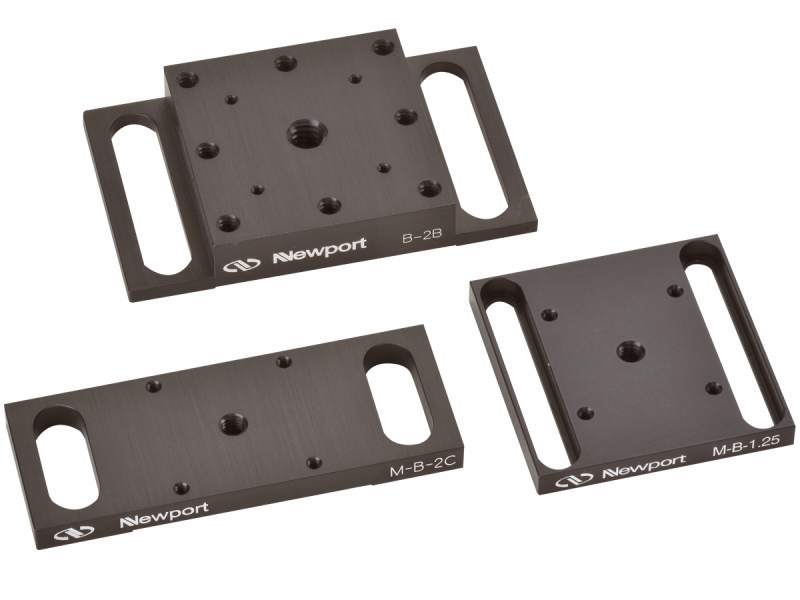

These aluminum, slotted base adapter plates are designed for mounting 25 mm or 40 mm translation stages to larger stages and surfaces. Their slotted base design provides versatile and convenient mounting of the attached stage for a variety of optical assemblies.
Plates designed to adapt smaller stages for assembly with larger stages

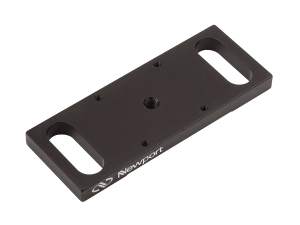

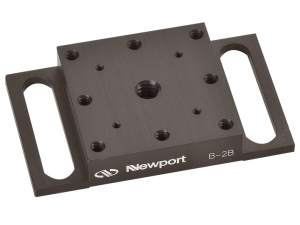

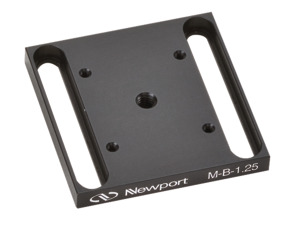

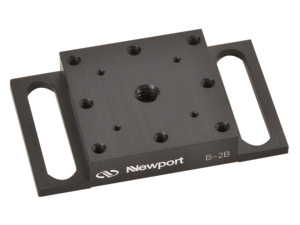

Three sizes available, all compatible with 25 mm DS Dovetail Stages
Slotted base mounting provides stable and versatile positioning
Additional CAD file downloads are not available for this product.
slotted-stage-adaptor-plates - Drawings
Additional drawings are not available for this product.
Features
Adapt to Stages of Different Sizes

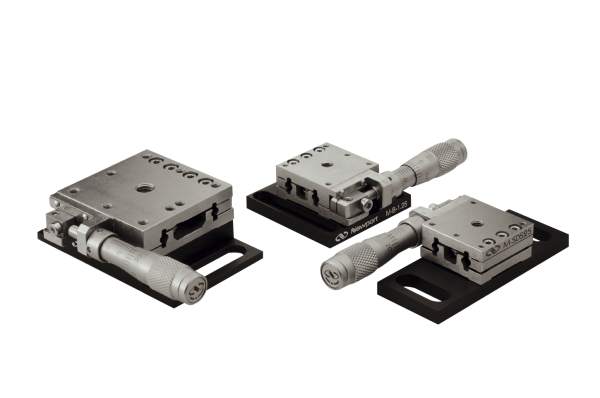

These stage adaptor plates can be used to adapt a 25 x 25 mm stage to a 40 x 40 mm or 65 x 65 mm stage. Compatible stages include SDS series ball bearing stainless steel linear stages, DS series industrial dovetail linear stages, RS series low profile rotation stages, and GON series goniometers.
Slots for Controlled Coarse Positioning
The slots in these adaptor plates can be used for controlled coarse positioning of the stage when mounted to an optical table or breadboard.
