Adaptor Plate, 25x25 or 40x40 mm Stage to Optical Table or 65x65 mm Stage

Adaptor Plate, 25x25 or 40x40 mm Stage to Optical Table or 65x65 mm Stage

Model: B-2B

$47

In Stock

Compare

Add to List

Product Series Overview

Slotted Stage Adaptor Plates

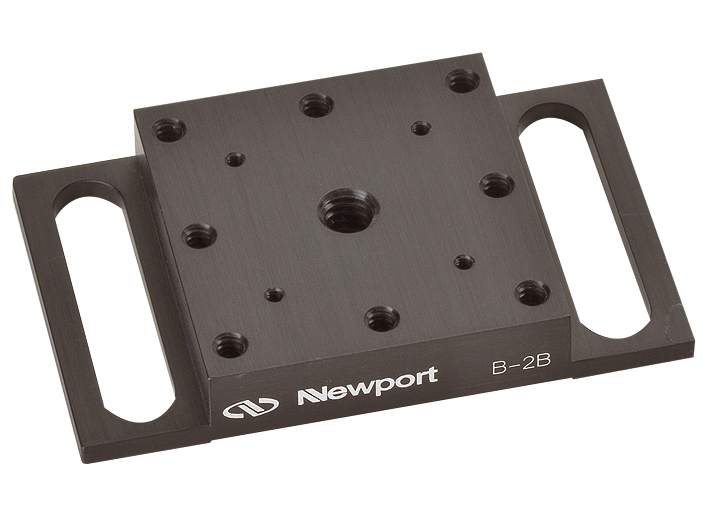

The B-2B allows 25 x 25 mm or 40 x 40 mm stages to be attached to a 65 x 65 mm stage, optical table, or other products with a standard 1 inch (25 mm) hole pattern.

Specifications

Technical Specs

Type

Slotted Adaptor Plate
Height

10 mm
Dimensions

40 x 65 mm
Thread Type

M2, 6-32 & 1/4-20

Material

Aluminum
Use

40 x 40 mm Stages
Translation Range

28 mm

Type

Slotted Adaptor Plate
Height

10 mm
Dimensions

40 x 65 mm
Thread Type

M2, 6-32 & 1/4-20

Material

Aluminum
Use

40 x 40 mm Stages
Translation Range

28 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

B-2B-ENV-S (145.6 kB, PDF)

Other

B-2B RoHS V3 (222.6 kB, PDF)
