Slotted Rotation Base, 70 Degree Range, 1/4-20

Model: 30

$72

In Stock

Compare

Add to List

Product Series Overview

Slotted Rotation Base

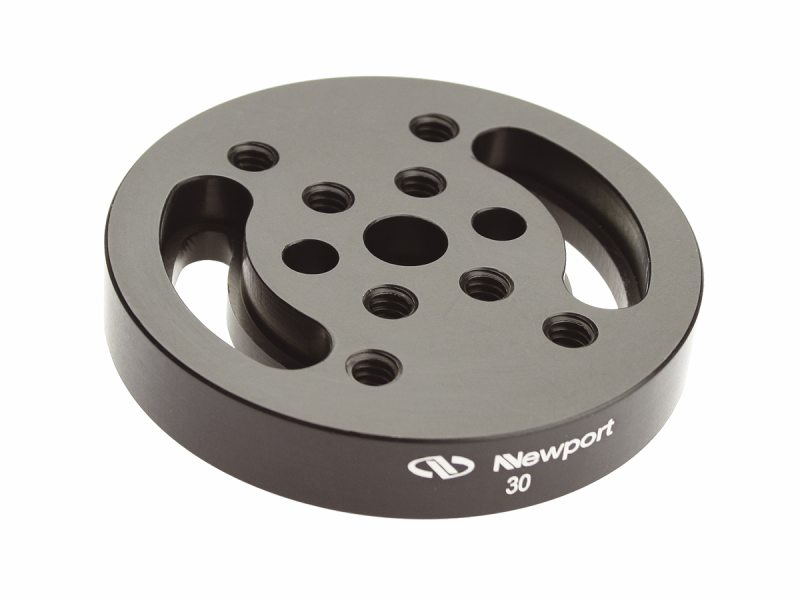

The 30 Slotted Base provides a full 70° of rotational adjustment for posts or translation stages. There is a pattern of eight 1/4-20 threaded holes, two slots and three thru holes for various types of mounting. This base is made from 0.50 in. thick black anodized aluminum and has a 3 in. diameter.

Specifications

Technical Specs

Type

Rotation Base
Height

0.5 in.
Base size

Ø2.95 in.
Thread Type

1/4-20 THD and CLR

Material

Aluminum
Translation Range

70°

Type

Rotation Base
Height

0.5 in.
Base size

Ø2.95 in.
Thread Type

1/4-20 THD and CLR

Material

Aluminum
Translation Range

70°
