Compare Model Drawings, CAD & Specs Base size Height Thread Type Availability Price
460P-RA1
$56
In Stock
 460P-RA1 Ø1.5 in. 0.32 in. 8-32 and 1/4-20
In Stock
 $56
460P-RA2
$74
In Stock
 460P-RA2 Ø2.6 in. 0.32 in. 8-32 and 1/4-20
In Stock
 $74
M-460P-RA1
$56
In Stock
 M-460P-RA1 Ø31.8 mm 8.1 mm M4 and M6
In Stock
 $56
M-460P-RA2
$74
In Stock
 M-460P-RA2 Ø64.8 mm 8.1 mm M4 and M6
In Stock
 $74

Features

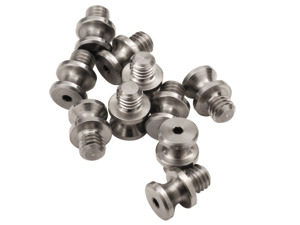

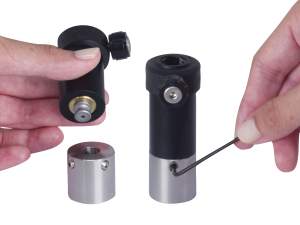

Attach With Standard Pegs and Lock Rotation With Set Screws

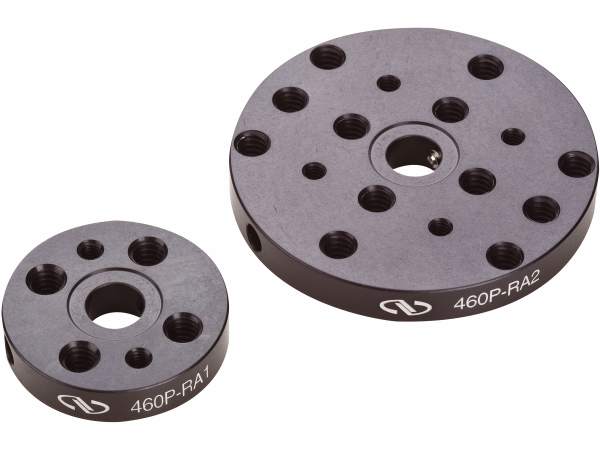

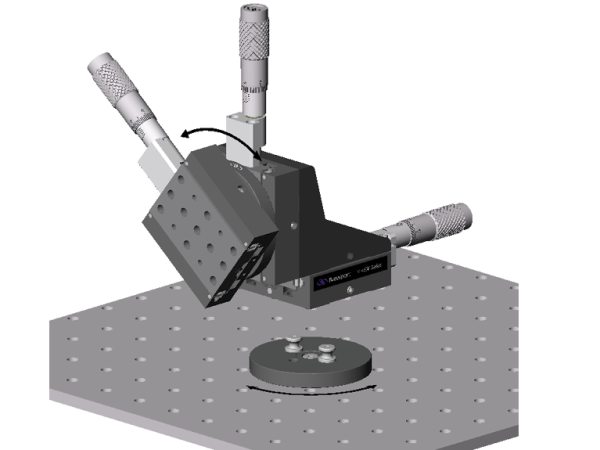

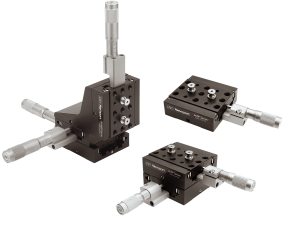

The black anodized aluminum Peg Rotation Base comes with a joining peg that goes through the center of the base and mounts to 1/4-20 (or M6) threaded holes in an optical breadboard or table. The base rotates around the peg freely and can be locked in position by tightening two 8-32 (or M4) set screws located on the circumference of the base. Shown here is 460P Series ball bearing or 460PD Series dovetail linear stages to be rotated to any angle and then locked in position.

Two Sizes in English or Metric Versions

The surface of both the 1.5 in. (31.8 mm) and the 2.6 in. (64.8 mm) diameter plates feature an array of threaded holes for attaching other components. This includes translations stages, and these adapters offer an easy way to add rotational degrees of freedom to stage assemblies. Both sizes are available in English or Metric versions, having 1/4-20 and 8-32 or M6 and M4 threads, respectively.
