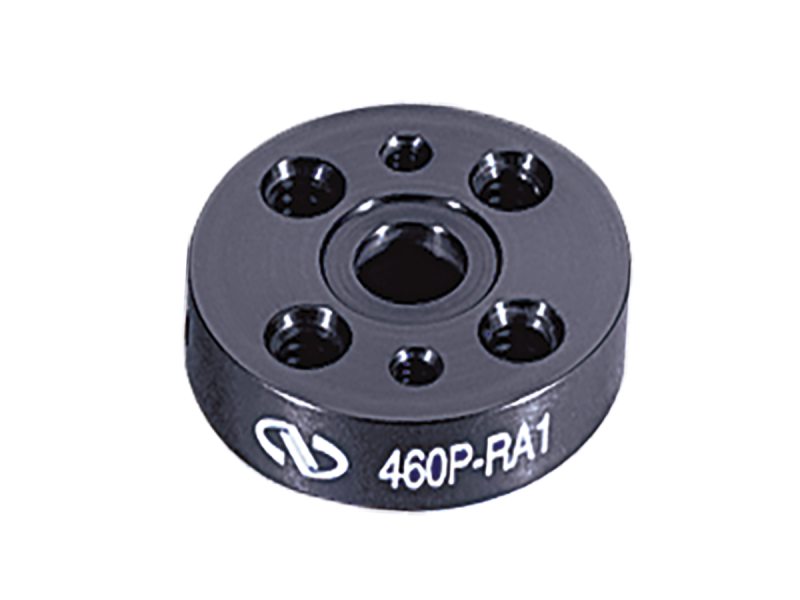

Peg Rotation Base, 1.5 in. Diameter

Model: 460P-RA1

$56

In Stock

Compare

Add to List

Product Series Overview

Peg Rotation Bases

The 460P-RA1 1.5 inch (31.8 mm) Diameter Peg Rotation Base provides simple manual rotation for a variety of components. This rotation base attaches via one of the PEG-10 pegs which mount to 1/4-20 threaded holes. Once in place, the rotation adaptor can be locked in position by tightening the two set screws located on the circumference of the base.

Specifications

Technical Specs

Type

Peg Rotation Adaptor
Height

0.32 in.
Base size

Ø1.5 in.
Thread Type

8-32 and 1/4-20

Material

Aluminum
Translation Range

360°

Type

Peg Rotation Adaptor
Height

0.32 in.
Base size

Ø1.5 in.
Thread Type

8-32 and 1/4-20

Material

Aluminum
Translation Range

360°
