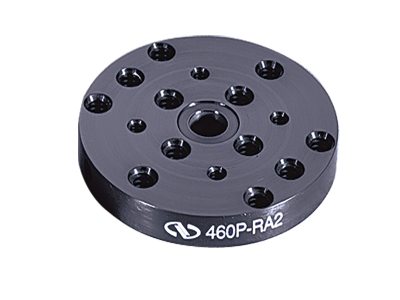

Peg Rotation Base, 2.6 in. Diameter
The 460P-RA2 2.6-in. Diameter Peg Rotation Base provides simple manual rotation for a variety of components. This rotation base attaches via one of the PEG-10 pegs which mount to 1/4-20 threaded holes. Once in place, the rotation adaptor can be locked in position by tightening the two set screws located on the circumference of the base.
Resources & Downloads
2D Product Drawings
460P-RA2 DWG-S(90.8 kB, PDF)
Other
460P-RA2 RoHS Certificate(279.2 kB, PDF) 460P-RA2_RoHS2021.pdf(685.6 kB, PDF)
