Overview

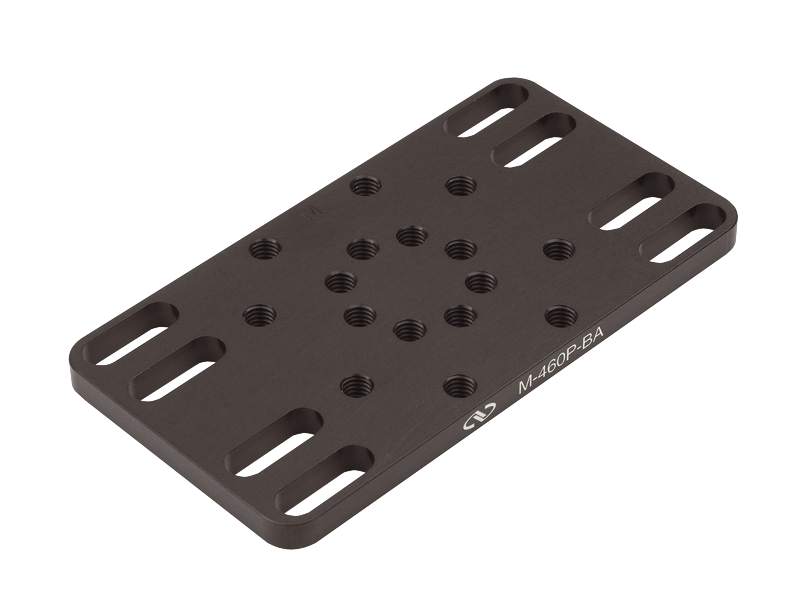

These slotted base plate are designed for use with a 460P Series high performance modular ball bearing linear stages

For use with a 460P Series linear stages
1/4-20 (M6) mounting slots for adjustability
Hole pattern for easy 460P stage mounting

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Availability	Featured Item	Price		Brand
		460P-BA Slotted Base Plate, 460P Series Linear Stage, 1/4-20 $72 Show	460P-BA Slotted Base Plate, 460P Series Linear Stage, 1/4-20	IMPERIAL	0.0	1.0	0.0		0.0	Show		$72		Newport
		M-460P-BA Slotted Base Plate, 460P Series Linear Stage, M6 $72 In Stock	M-460P-BA Slotted Base Plate, 460P Series Linear Stage, M6	METRIC	0.0	1.0	0.0		0.0	In Stock		$72		Newport

Show All

Features

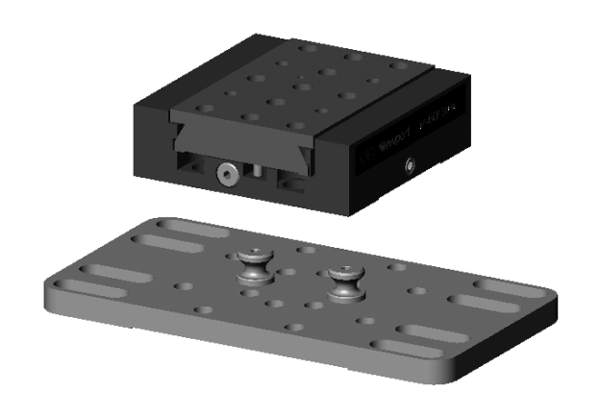

Slotted Base for Peg-Joining Stages

The 460P-BA Slotted Base Plate is designed for the 460P Series Modular Peg-Joining Ball Bearing Stage and 460PD Series Modular Peg-Joining Dovetail Stage for quick release and repositioning via the pegs. The slot design allows a coarse positioning of the stage within 0.524 in. (13.3 mm) range.
