Compare Model Drawings, CAD & Specs Availability Price

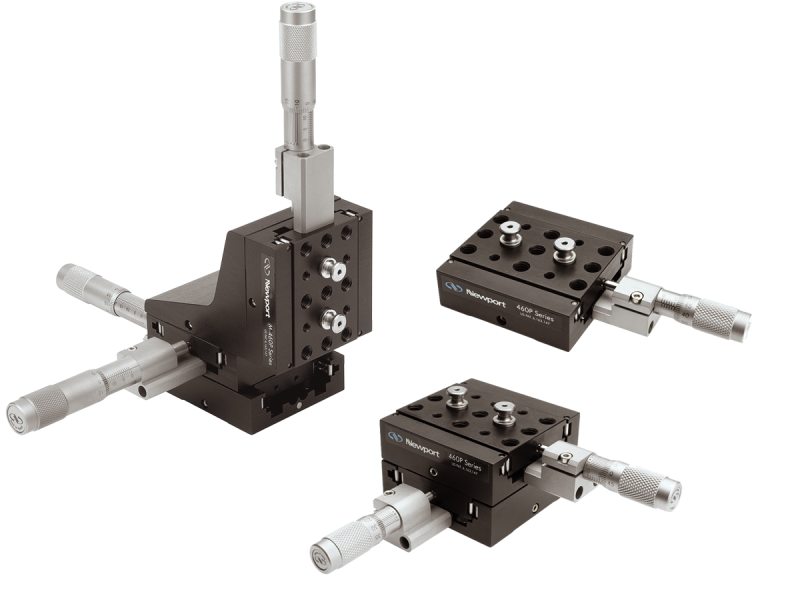

Peg-Joining Linear Stage, 1.0 inch Travel, 8-32 and 1/4-20 Threads
$316
In Stock
460P-X Peg-Joining Linear Stage, 1.0 inch Travel, 8-32 and 1/4-20 Threads
In Stock
$316
Peg-Joining Linear Stage, 0.5 inch Travel, 8-32 and 1/4-20 Threads
$295
In Stock
460P-X-05 Peg-Joining Linear Stage, 0.5 inch Travel, 8-32 and 1/4-20 Threads
In Stock
$295
Peg-Joining XY Linear Stage, 1.0 inch Travel, 8-32 and 1/4-20 Threads
$578
In Stock
460P-XY Peg-Joining XY Linear Stage, 1.0 inch Travel, 8-32 and 1/4-20 Threads
In Stock
$578
Peg-Joining XY Linear Stage, 0.5 inch Travel, 8-32 and 1/4-20 Threads
$526
In Stock
460P-XY-05 Peg-Joining XY Linear Stage, 0.5 inch Travel, 8-32 and 1/4-20 Threads
In Stock
$526
Peg-Joining XYZ Linear Stage, 1.0 inch Travel, 8-32 and 1/4-20 Threads
$970
In Stock
460P-XYZ Peg-Joining XYZ Linear Stage, 1.0 inch Travel, 8-32 and 1/4-20 Threads
In Stock
$970
Peg-Joining XYZ Linear Stage, 0.5 inch Travel, 8-32 and 1/4-20 Threads
$917
In Stock
460P-XYZ-05 Peg-Joining XYZ Linear Stage, 0.5 inch Travel, 8-32 and 1/4-20 Threads
In Stock
$917
Peg-Joining Linear Stage, 25.4 mm Travel, M4 and M6 Threads
$316
In Stock
M-460P-X Peg-Joining Linear Stage, 25.4 mm Travel, M4 and M6 Threads
In Stock
$316
Peg-Joining Linear Stage, 12.7 mm Travel, M4 and M6 Threads
$295
In Stock
M-460P-X-05 Peg-Joining Linear Stage, 12.7 mm Travel, M4 and M6 Threads
In Stock
$295
Peg-Joining XY Linear Stage, 25.4 mm Travel, M4 and M6 Threads
$578
In Stock
M-460P-XY Peg-Joining XY Linear Stage, 25.4 mm Travel, M4 and M6 Threads
In Stock
$578
Peg-Joining XY Linear Stage, 12.7 mm Travel, M4 and M6 Threads
$526
M-460P-XY-05 Peg-Joining XY Linear Stage, 12.7 mm Travel, M4 and M6 Threads $526
Peg-Joining XYZ Linear Stage, 25.4 mm Travel, M4 and M6 Threads
$970
In Stock
M-460P-XYZ Peg-Joining XYZ Linear Stage, 25.4 mm Travel, M4 and M6 Threads
In Stock
$970
Peg-Joining XYZ Linear Stage, 12.7 mm Travel, M4 and M6 Threads
$917
In Stock
M-460P-XYZ-05 Peg-Joining XYZ Linear Stage, 12.7 mm Travel, M4 and M6 Threads
In Stock
$917
Notes:

Actuators are not included. Please see specifications for recommended actuators.

Specifications

Features

Peg Mounting for Excellent Repeatability

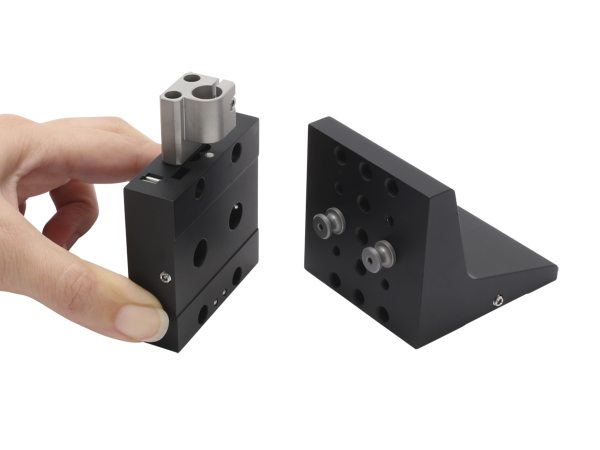

With most translation stages, the top part of the stage needs to be moved to the side for mounting or unmounting. The 460P stages, with the peg, can be mounted or unmounted from the side of the stage with out touching the top part of the stage. additionally, the tight toleranced fit of the peg into the stages means they can be removed and replaced with excellent repeatability.

Bottom view showing the two center holes for pegs and four outer holes for screws.

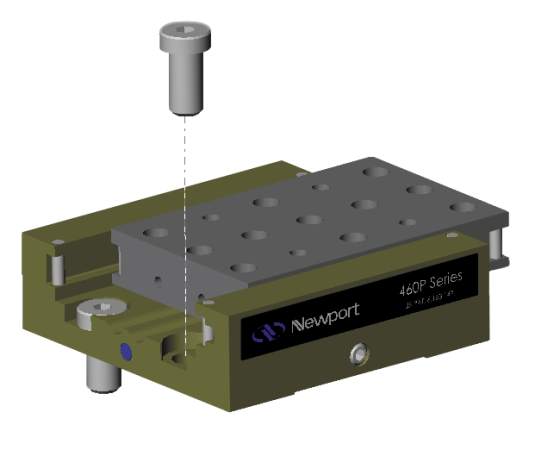

Four counterbored holes in the base can be used for bolting the stage down.

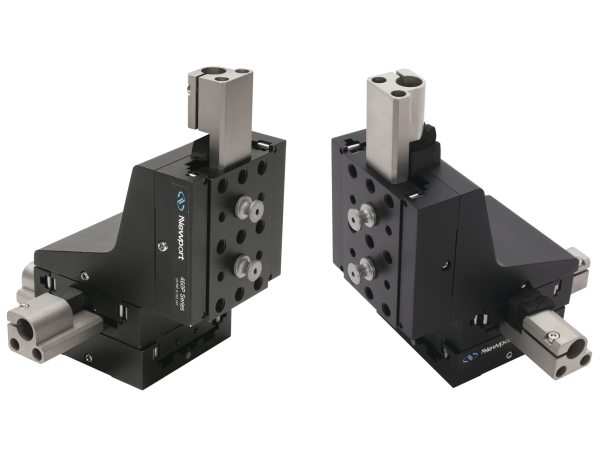

Dual Mounting Features

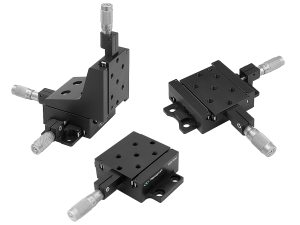

In addition to the peg mounting feature, these stages have four counter bored holes in the base for traditional mounting. Angle brackets are also available for creating xyz configurations. Each stage is supplied with two peg screws and four low-profile screws. The 460P Series Stages are also compatible for adjoining with our 460 PD Series Peg-Joining Dovetail Stages.

Remove and Replace Stages Without Moving Position

With most translation stages, the top part of the stage needs to be moved to the side for mounting or unmounting. The 460P stages, with the peg, can be mounted or unmounted from the side of the stage with out touching the top part of the stage. additionally, the tight toleranced fit of the peg into the stages means they can be removed and replaced with excellent repeatability.

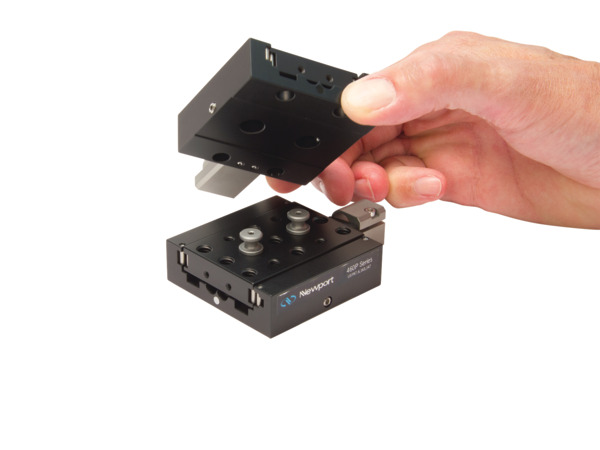

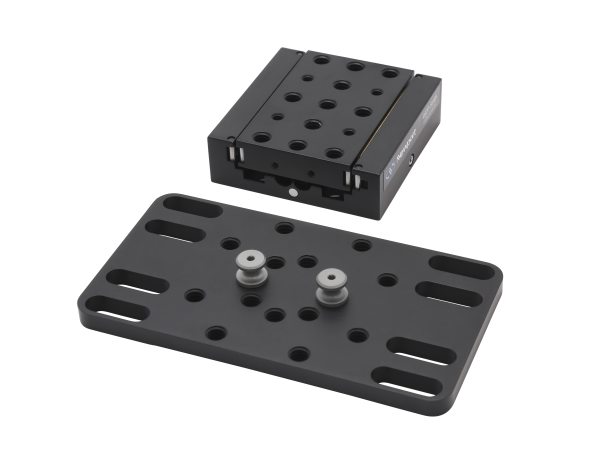

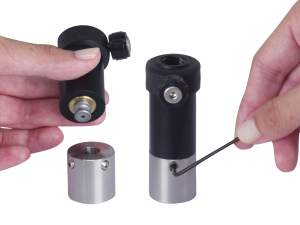

Pegs are used to securely attach the stages together, allowing quick assembly and great flexibility.

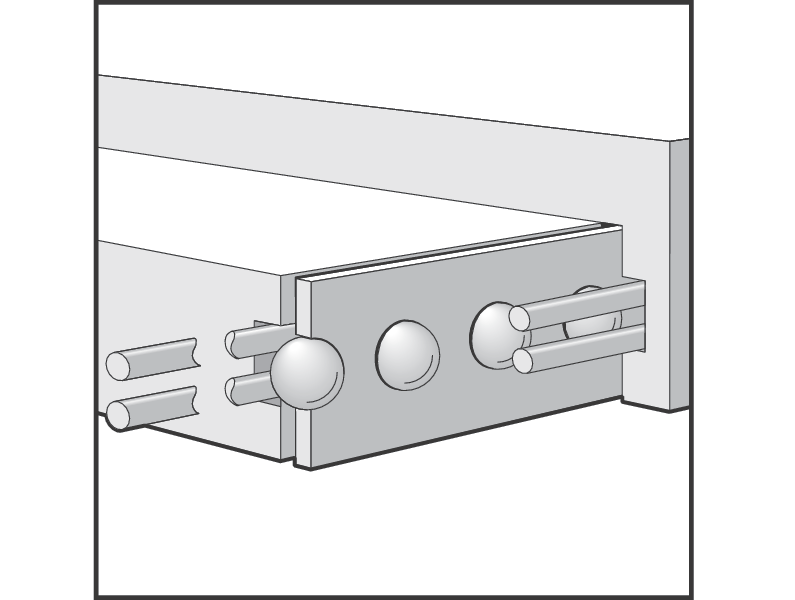

Ball-bearings for Smooth Translation

460P Series High-Performance Modular Ball Bearing Linear Stages are made of aluminum with stainless steel, two-point contact ball bearings and guiding rods. Actuators drive against a polished carbide insert, preloaded with a spring to prevent backlash. Stainless steel actuator mounts are compatible with either manual or motorized actuators to accommodate your precision needs and can also be reversed to accommodate vertical mounting.

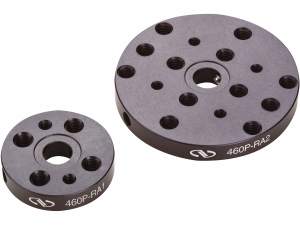

Rotation Adapter

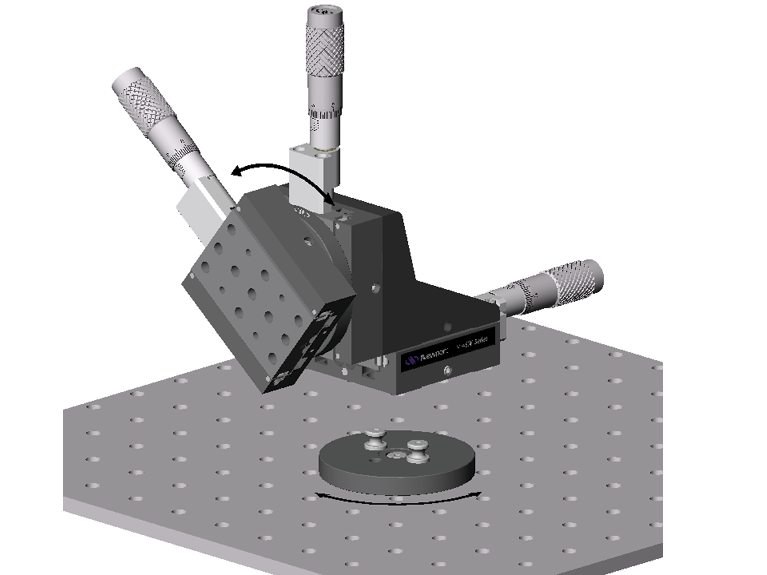

Rotation adapters can be used above or below a stage to manually rotate the stage around a peg and then lock the position.
