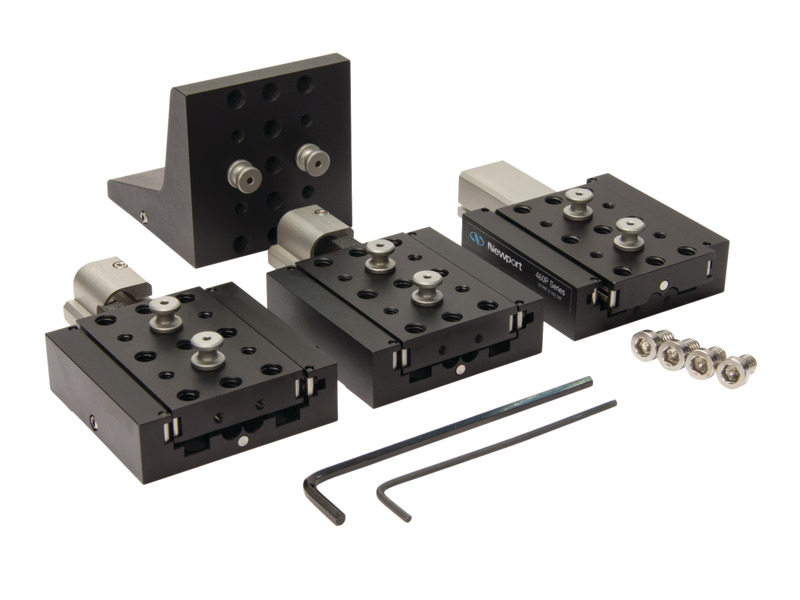

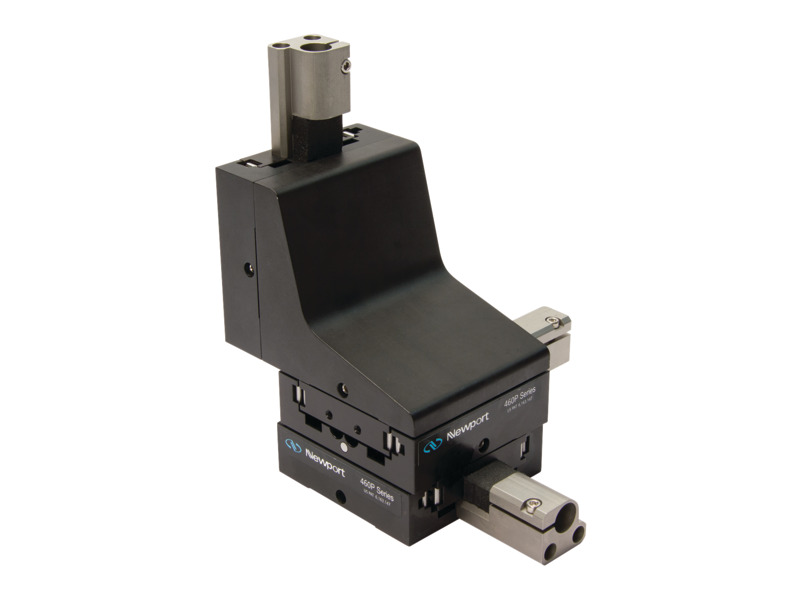

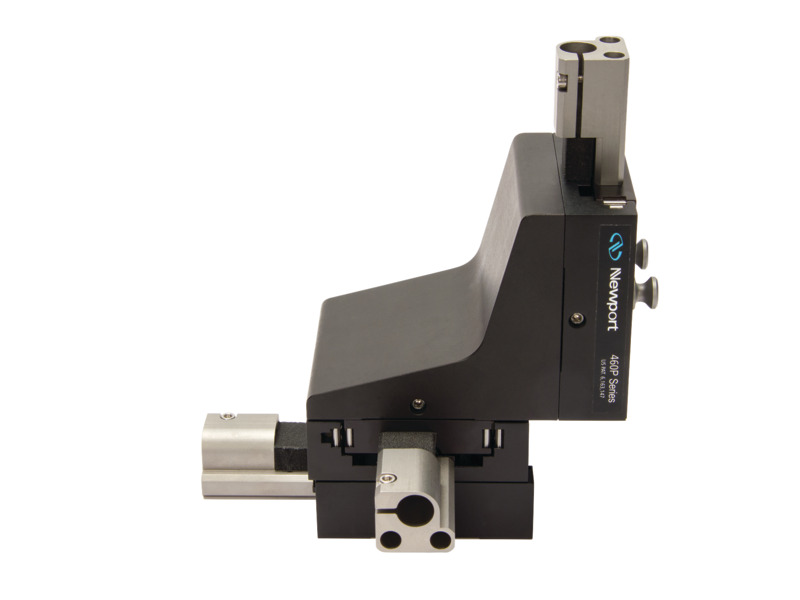

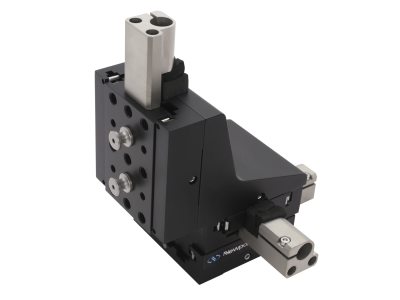

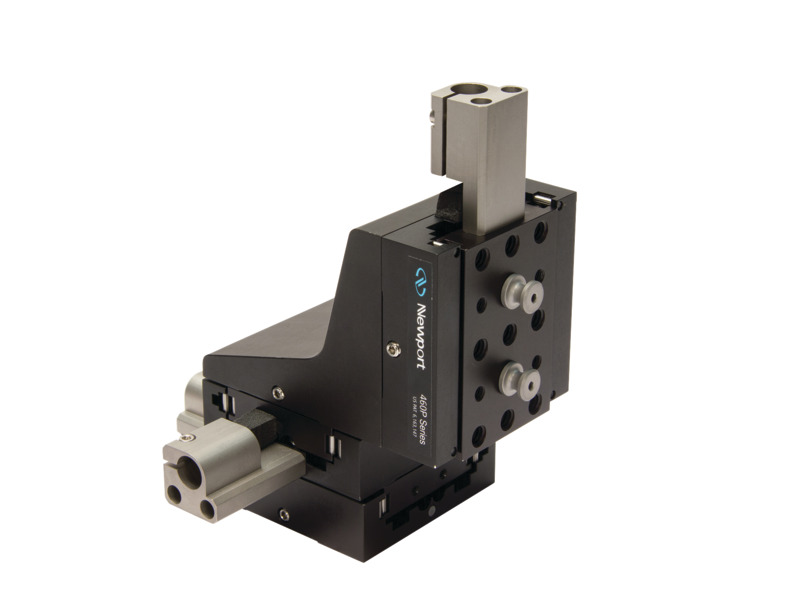

XYZ Linear Stage, Peg-Joining, 25.4 mm Travel, M4 and M6 Threads

Technical Specs

  • Axes of Travel
    X, Y, Z
  • Maximum Stage Travel
    25 mm
  • Thread Type
    M4 and M6
  • Load Capacity
    67 N
  • Maximum Centered Load
    67 N
  • Vertical Load Capacity
    22 N
  • Angular Deviation
    <150 µrad
  • Material
    Aluminum
  • Bearings
    Ball Bearings
  • Drive Location
    Center drive
  • Recommended Adjustment Screw
  • Recommended Vernier Micrometer
  • Recommended Digital Micrometer
  • Recommended Lockable Micrometer
  • Recommended LTA Motorized Actuator

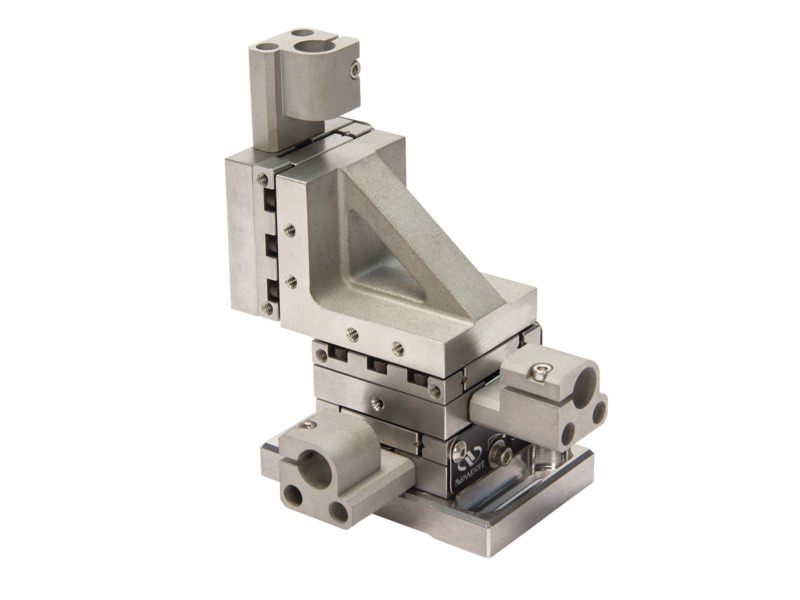

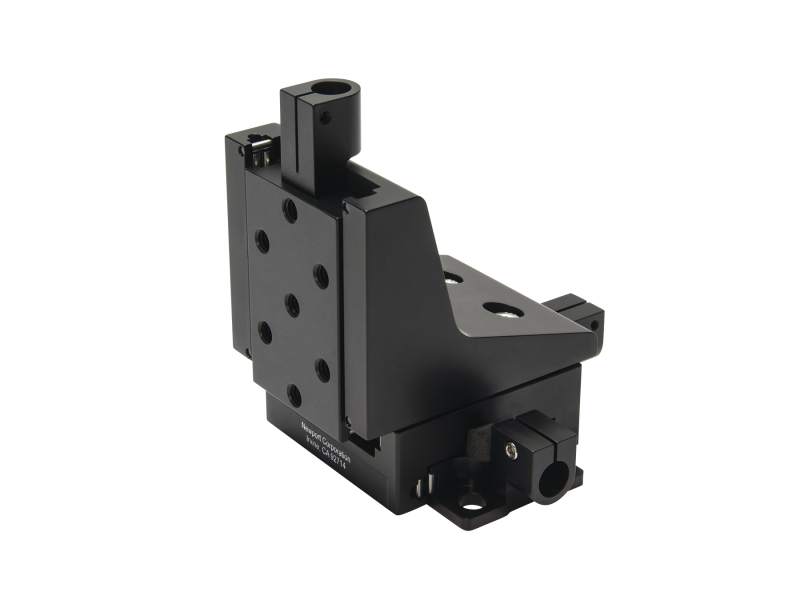

Similar Products
