Quick-Mount, Ball Bearing Aluminum Linear Stages
Quick-Mount, Ball Bearing Aluminum Linear Stages

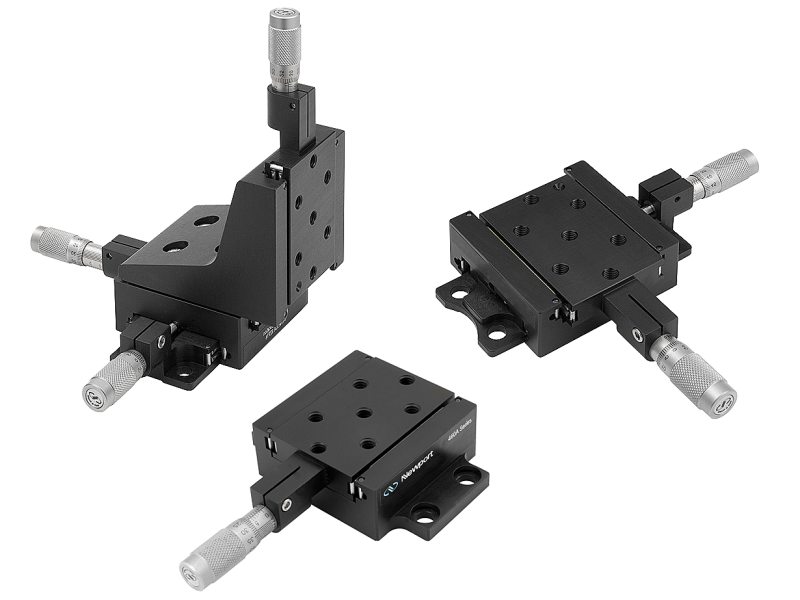

460A Series quick-mount linear stages have external mounting tabs, as apposed to through holes beneath the sliding stage, which allow the fastest mounting regardless of the stage's initial position. The light-weight aluminum construction translates on stainless steel ball bearings and rods with a minimum profile for 0.5 in. linear translation with <150 µrad deviation.
- Stages mounted with side tabs for easiest integration into optical systems
- Low profile fits in tightest configurations
- Ball-bearings provide smooth travel over 0.5 in. with <150 µrad deviation
- Can be configured with manual or motorized actuators and for left-handed use See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 460A-XManual Linear Stage, Quick-Mount, 0.5 in. Travel, 1/4-20 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 460A-XYXY Linear Stage, Quick-Mount, 0.5 in. Travel, 1/4-20 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 460A-XY-LHXY Linear Stage, Quick-Mount, 0.5 in. Travel, 1/4-20, Left-Handed | In Stock | ||||
 | 460A-XZXZ Linear Stage, Quick-Mount, 0.5 in. Travel, 1/4-20 | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 460A-XYZXYZ Linear Stage, Quick-Mount, 0.5 in. Travel, 1/4-20 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 460A-XYZ-LHXYZ Linear Stage, Quick-Mount, 0.5 in. Travel, 1/4-20, Left-Handed | 3 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 460A-X-MICLinear Stage Bundle, Three 460A-X Linear Stages and SM-13 Micrometers, 1/4-20 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 460A-XY-MICLinear Stage Bundle, Three 460A-XY Linear Stages and SM-13 Micrometers, 1/4-20 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 460A-XYZ-MICLinear Stage Bundle, Three 460A-XYZ Linear Stages & SM-13 Micrometers, 1/4-20 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | M-460A-XManual Linear Stage, Quick-Mount, 13 mm Travel, M6 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Notes:
The basic models do not include actuators; please see specifications for recommended actuators.
Features
Stainless Steel Ball-Bearings for Smooth Translation
The light-weight aluminum construction translates using stainless steel ball bearings running along opposing pairs of polished stainless steel rods. The stages are also spring loaded against the drive actuator for backlash free motion. For the lower load capacity of the lightweight stage, this offers exceptional straightness of travel over the full 0.5-in. (or 13 mm) travel range, with <150 µrad deviation.
Fast Side Tab Mounting
Most standard stages mount beneath the translating component, requiring proper positioning to expose the mounting through holes. With the 460A Series Quick-Mount Linear Stages, however, convenient external mounting tabs eliminate this need. These stages offer the easiest mounting, regardless of the stage's initial position, for fast implementation into optical systems.
Low Profile Design Fits in Tight Spaces
Both X and XY configurations of these stages have the same minimum profile height of 1 in. to fit easily anywhere. Stainless steel actuator mounts are compatible with either manual or motorized actuators to accommodate your precision needs, sold with (-MIC models) or without actuators included.
Versatile Stage Configurations

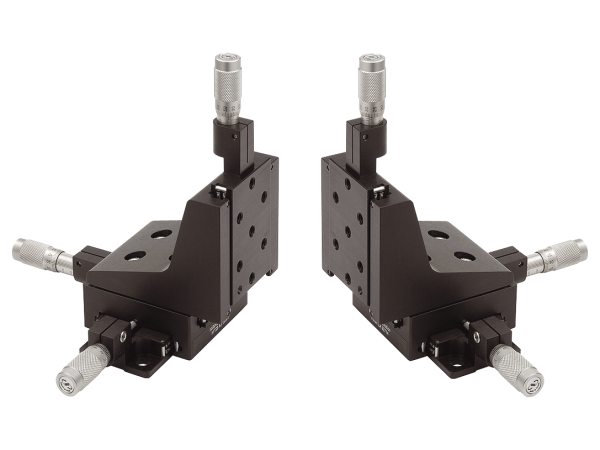

Multiple configurations for these stages are available to match your specific requirements: X, XY, XZ and XYZ. The integrated vertical stage and angle bracket is user removable allowing conversion of an XYZ stage to an XY stage, or conversion of an XZ stage to an X stage. XYZ stage is offered with a choice between left-handed and right-handed.
Cost Saving Stage-and-Micrometer Bundles

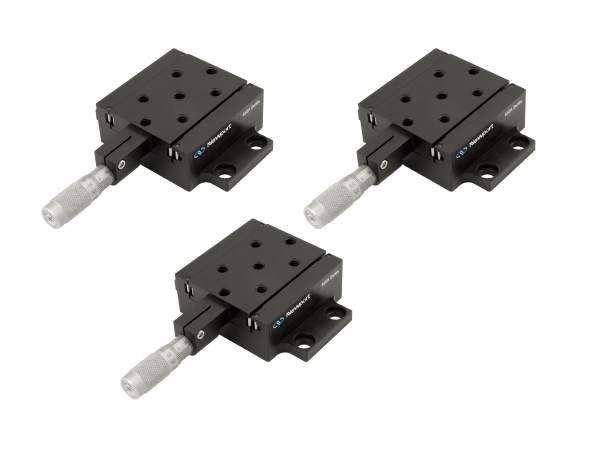

We offer a special bundle of three (M-)460A-X, (M-)460A-XY, or (M-)460A-XYZ stages with the recommended SM-13 actuators included. When you purchase the bundle, you get all the SM-13 micrometers for free!
Accessories
Motorized Actuators
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | LTA-HSMotorized Actuator, High Speed, 50 mm Travel, 3/8-40 Thread | 2 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | TRA12CCMotorized Actuator, Miniature, 12 mm Travel, DC Servo motor | 2 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| TRA12PPDMotorized Actuator, Miniature, 12 mm Travel, Stepper, 25-pin D-Sub | 4 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More |
Manual Actuators
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | DM-13LLockable Differential Micrometer, 13 mm Coarse, 0.2 mm Fine, 11 lb. | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | AJS127-0.5Adjustment Screw, 127 TPI, 12.7 mm Travel, Small Knob, Side Lock | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | DM-13Differential Micrometer Head, 13.0 mm Coarse, 0.2 mm Fine, 5 lb. Load | 5 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | AJS100-0.5Adjustment Screw, 100 TPI, 12.7 mm Travel, Small Knob, Side Lock | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | SM-13Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI | 4 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | HR-13Micrometer Head, High Resolution, 0.5 µm Sensitivity, 13 mm Travel | 4 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More |
