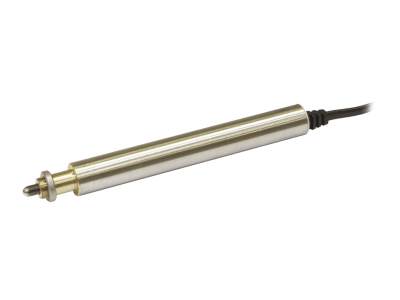

Miniature Motorized Actuator, 12 mm Travel, DC Servo motor

Model: TRA12CC

Miniature Motorized Actuator, 12 mm Travel, DC Servo motor

Model: TRA12CC

Technical Specs

  • Axial Load Capacity (+Cx)
    60 N
  • Inverse Axial Load Capacity (-Cx)
    -60 N
  • Travel Range
    12 mm
  • Minimum Incremental Motion
    0.20 µm
  • Maximum Speed
    0.4 mm/s
  • Accuracy, Typical
    ±2.2 µm
  • Accuracy, Guaranteed
    ±4.0 µm
  • Bi-directional Repeatability (Typical)
    ±0.15 µm
  • Bi-directional Repeatability, Guaranteed
    ±1.25 µm
  • Uni-directional Repeatability (Typical)
    ±0.10 µm
  • Uni-directional Repeatability, Guaranteed
    ±0.50 µm
  • Reduction Gear
    1:256
  • Origin
    Optical, at lower limit
  • Origin Repeatability
    ±2 µm
  • Encoder Resolution
    0.030517578 µm
  • Limit Switches
    Optical switches, both ends
  • Cable Length
    3 m
  • Connectors
    DB25 - Male
  • Weight
    0.25 kg
  • MTBF
    10000 h (25N load, 10% duty cycle)
  • RoHS
    Compliant

Resources & Downloads

Other
2D / 3D CAD Software
Drawings And Cad
Literature

Miniature Motorized Actuator, 12 mm Travel, DC Servo motor

Model: TRA12CC

$725
In Stock
