Linear Stage Bundle, Three M-460A-X Linear Stages & SM-13 Micrometers, M6

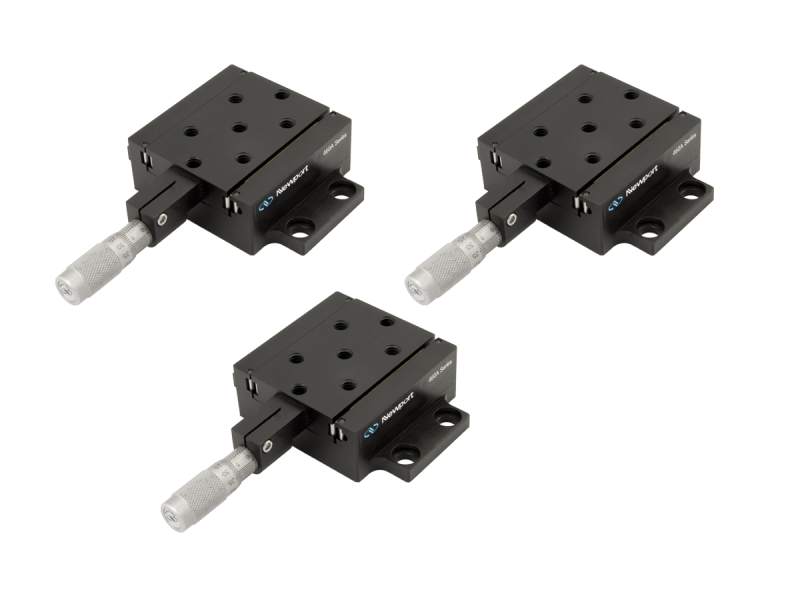

The M-460A-X-MIC is a special bundle of three M-460A-X Linear Stages included with all required SM-13 Micrometers. The M-460A-X features all aluminum construction with hardened ball bearings running along opposing pairs of polished and hardened stainless steel rods. This offers exceptional straightness of travel, but a lower load capacity than our crossed-roller bearing stages. The SM-13 Vernier Micrometer is a standard drive for most Newport stages, including the 460A-Series stages. It has a 13 mm travel range and a 9 lb. load capacity. The SM-13 has a 0.5 mm pitch (50.8 TPI) threads and read directly in increments of 10 μm, with vernier reading of 1 μm.

Stainless Steel Ball-Bearings for Smooth Translation

The light-weight aluminum construction translates using stainless steel ball bearings running along opposing pairs of polished stainless steel rods. The stages are also spring loaded against the drive actuator for backlash free motion. For the lower load capacity of the lightweight stage, this offers exceptional straightness of travel over the full 0.5-in. (or 13 mm) travel range, with <150 µrad deviation.

Fast Side Tab Mounting

Most standard stages mount beneath the translating component, requiring proper positioning to expose the mounting through holes. With the 460A Series Quick-Mount Linear Stages, however, convenient external mounting tabs eliminate this need. These stages offer the easiest mounting, regardless of the stage's initial position, for fast implementation into optical systems.

Low Profile Design Fits in Tight Spaces

Both X and XY configurations of these stages have the same minimum profile height of 1 in. to fit easily anywhere. Stainless steel actuator mounts are compatible with either manual or motorized actuators to accommodate your precision needs, sold with (-MIC models) or without actuators included.

Specifications

Technical Specs

Axes of Travel
X
Maximum Stage Travel
13 mm
Centered Normal Load Capacity
67 N
Vertical Axial Load Capacity
22 N
Recommended Actuators
Included
Angular Deviation
<150 µrad

Material
Aluminum
Bearings
Single-Row Ball Bearings
Drive Location
Center drive
Thread Type
M6

Axes of Travel
X
Maximum Stage Travel
13 mm
Centered Normal Load Capacity
67 N
Vertical Axial Load Capacity
22 N
Recommended Actuators
Included
Angular Deviation
<150 µrad

Material
Aluminum
Bearings
Single-Row Ball Bearings
Drive Location
Center drive
Thread Type
M6

Resources & Downloads

2D Product Drawings

460-X-DWG-S(103.7 kB, PDF)
SM Series-S(89.8 kB, PDF)

Other

M-460A-X-MIC RoHS Certificate(286 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
TRA12CCMotorized Actuator, Miniature, 12 mm Travel, DC Servo motor	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,086
BB-MOptical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$37
M-SK-ASocket Head Cap Screw Kit, Stainless Steel, M4 & M6, Qty 805	UNIVERSAL	Contact Us	$135
M-BDK-1Ball Driver Tool Set, Includes: 1.5, 2, 2.5, 3, 4 & 5 mm Wrenches	METRIC	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$40
AW-1Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$20
TA-M6Q20-10Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$43

Similar

Description	Compatibility	Avail.	Price
M-443Linear Stage, High-Performance, Low-Profile, Ball Bearings, 50 mm, M6	METRIC	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$461
M-423Linear Stage, High-Performance, Low-Profile, 25 mm, M6	METRIC	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$355
M-TSX-1DDovetail Linear Stage, 1.0 in. Travel, Fast-drive 20 TPI Screw, M6 Threads	METRIC	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$232
M-460P-XX Linear Stage, Peg-Joining, 25.4 mm Travel, M4 and M6 Threads	METRIC	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$437
M-460P-X-05X Linear Stage, Peg-Joining, 12.7 mm Travel, M4 and M6 Threads	METRIC	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$409

Compatible

Description	Compatibility	Avail.	Price
TRA12PPDMotorized Actuator, Miniature, 12 mm Travel, Stepper, 25-pin D-Sub	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,086
SM-13Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$105
HR-13Micrometer Head, High Resolution, 0.5 µm Sensitivity, 13 mm Travel	UNIVERSAL	2 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$234
DM-13Differential Micrometer Head, 13.0 mm Coarse, 0.2 mm Fine, 5 lb. Load	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$694
AJS100-0.5KAdjustment Screw, 100 TPI, 12.7 mm Travel, Large Knob, Side Lock	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$40
