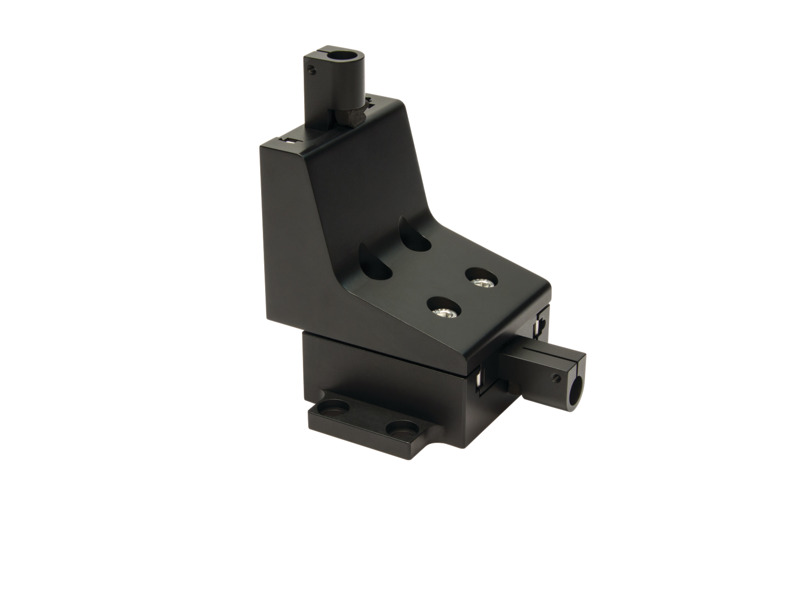

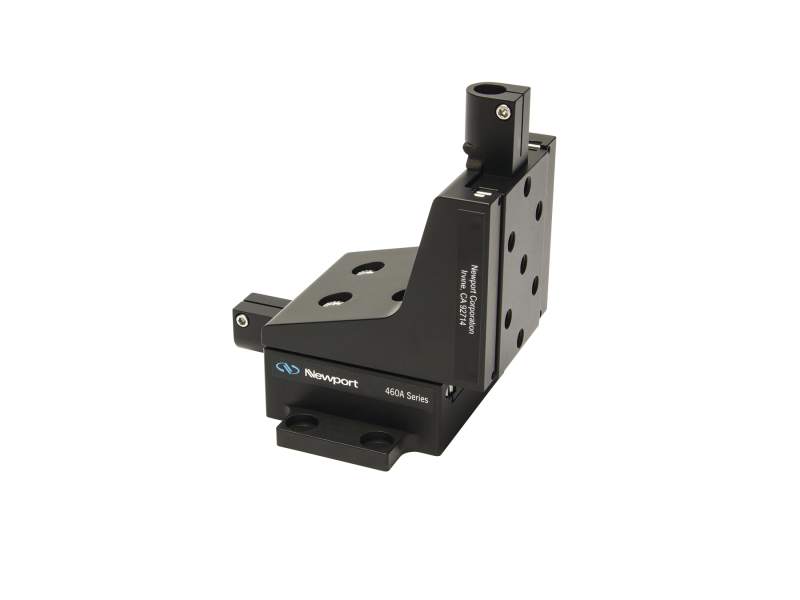

Quick-Mount Linear Stage, 0.5 inch XZ Travel

Model: M-460A-XZ

Quick-Mount Linear Stage, 0.5 inch XZ Travel

Model: M-460A-XZ

Technical Specs

  • Axes of Travel
    X, Z
  • Maximum Stage Travel
    13 mm
  • Thread Type
    M6
  • Recommended Actuators
    SM-13 mic, AJS100-0.5 screw
  • Load Capacity
    67 N
  • Angular Deviation
    <150 µrad
  • Material
    Aluminum
  • Bearings
    Ball Bearings
  • Drive Location
    Center drive
  • Maximum Centered Load
    67 N
  • Vertical Load Capacity
    22 N

Resources & Downloads

2D / 3D CAD Software
Drawings And Cad

Quick-Mount Linear Stage, 0.5 inch XZ Travel

Model: M-460A-XZ

$600
In Stock
