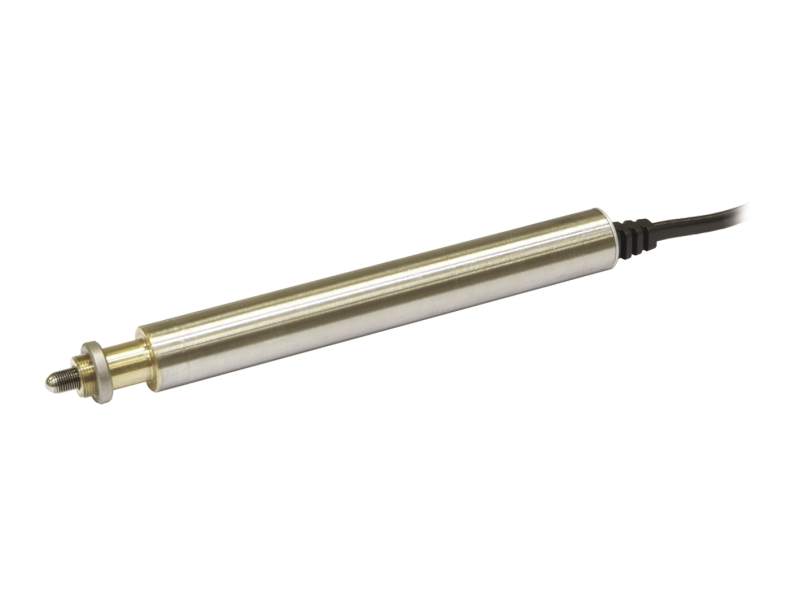

Miniature Motorized Actuator, 12 mm Travel, Stepper, 25-pin D-Sub

Model: TRA12PPD

Miniature Motorized Actuator, 12 mm Travel, Stepper, 25-pin D-Sub

Model: TRA12PPD

Technical Specs

  • Axial Load Capacity (+Cx)
    60 N
  • Inverse Axial Load Capacity (-Cx)
    -60 N
  • Travel Range
    12 mm
  • Minimum Incremental Motion
    0.10 µm
  • Maximum Speed
    0.4 mm/s
  • Accuracy Typical (Guaranteed)
    ±2.2 (±4.0) µm
  • Bi-directional Repeatability with Compensation Typical (Guaranteed)
    ±0.15 (±1.25) µm
  • Uni-directional Repeatability Typical (Guaranteed)
    ±0.10 (±0.50) µm
  • Feedback
    Open loop
  • Base Material
    Stainless Steel
  • Drive Type
    2 Phase Stepper
  • Drive Screw Pitch
    0.5 mm
  • Drive Mechanism
    Rolled lead screw
  • Reduction Gear
    1:256
  • Origin
    Uses minimum travel limit for homing, typically 4 µm repeatability
  • Origin Repeatability
    ±2 µm
  • Limit Switches
    Optical switches, both ends
  • Cable Length
    3 m
  • Connector Type
    25-pin D-Sub
  • Weight
    0.40 kg
  • MTBF
    10,000 h
  • Power Consumption
    5 W
