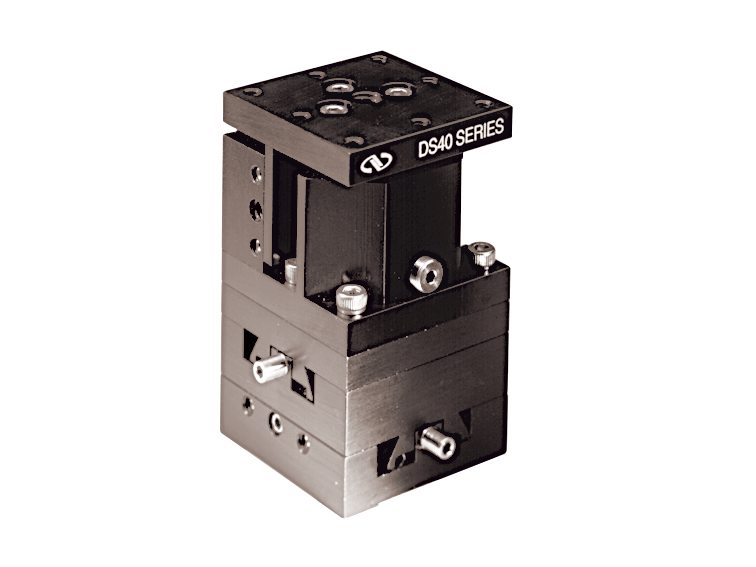

XYZ Linear Stage, Dovetail, 0.55 in XY, .20 in Z, 1.57 x 1.57 in.

  • Axes of Travel
    X, Y, Z
  • Maximum Stage Travel
    14 mm
  • Travel Range X, Y, Z
    14 mm, 14 mm, 5 mm
  • Centered Normal Load Capacity
    36 N
  • Recommended Actuators
    Included
  • Sensitivity
    1 µm
  • Material
    Aluminum
  • Bearings
    Dovetail Slide
  • Drive Location
    Center drive
  • Platform Size
    40 x 40 mm
  • Thread Type
    6-32 and 1/4-20
