Optical Pedestal, 2.0 in. Height, 1.0 in. Diameter, 8-32 Thread
Optical Pedestal, 2.0 in. Height, 1.0 in. Diameter, 8-32 Thread
Model: PS-2
Product Series Overview

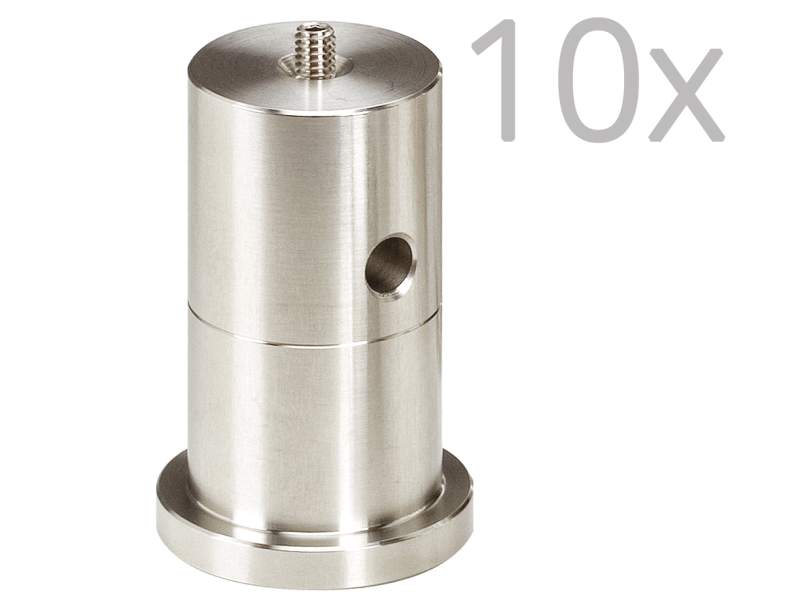

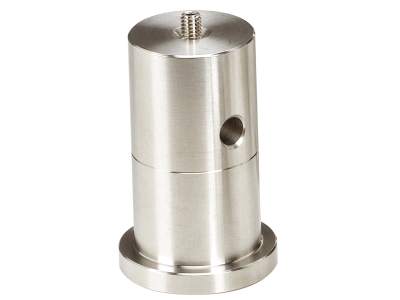

1.0 in. Optical Pedestals, Graduated DiameterThe PS-2 Precision Ground Stainless Steel Optical Pedestal maintains long-term optical system alignment. This 1.0 in. diameter post has a 2.0 in. height. Each post is marked with an index groove every 1.0 in. for a quick height reference. Cross-drilled holes allow 3/16 in. hex wrenches to aid in tightening and loosening assembled posts. An 8-32 threaded hole on each end allows optical pedestals and pedestal extenders to be attached together end-to-end using a setscrew. In-between heights can be achieved by combining a pedestal post with a 1/2 in. high post and/or spacers, available in 0.125 and 0.25 in. heights. For direct mounting to a threaded hole on an optical table, use a 1/4-20 to 8-32 thread adaptor. Optical pedestals enable ultra-stable mounting of optical mounts at low beam heights. Slotted clamping forks secure optical pedestals anywhere on an optical table. This product is also available in 10-piece saving pack
Resources & Downloads
2D Product Drawings
PS Posts-S(175.7 kB, PDF)
Other
PS-2 RoHS Certificate(277 kB, PDF) PS-2_RoHS2021.pdf(678.9 kB, PDF)
