Optical Pedestal, 0.5 in. Height, 1.0 in. Diameter, 8-32 Thread
Optical Pedestal, 0.5 in. Height, 1.0 in. Diameter, 8-32 Thread
Model: PS-0.5
Product Series Overview

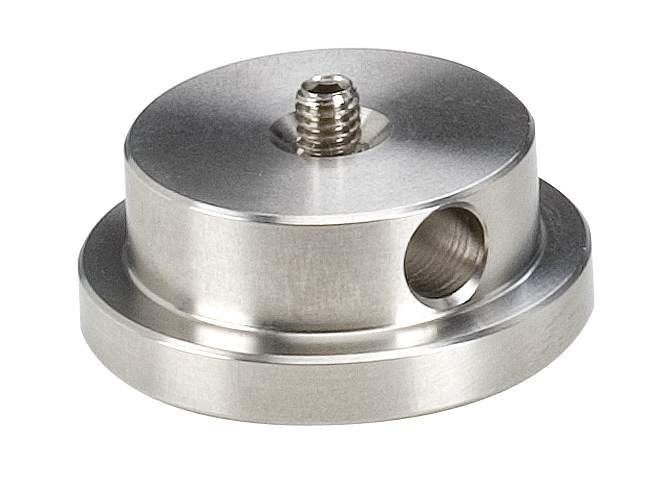

1.0 in. Optical Pedestals, Graduated DiameterThe PS-0.5 Precision Ground Stainless Steel Optical Pedestal maintains long-term optical system alignment. This 1.0 in. diameter post has a 1/2 in. height. Cross-drilled holes allow 3/16 in. hex wrenches to aid in tightening and loosening assembled posts. An 8-32 threaded hole on each end allows optical pedestals and pedestal extenders to be attached together end-to-end using a setscrew. In-between heights can be achieved by combining a pedestal post with a 1/2 in. high post and/or spacers, available in 0.125 and 0.25 in. heights. For direct mounting to a threaded hole on an optical table, use a 1/4-20 to 8-32 thread adaptor. Optical pedestals enable ultra-stable mounting of optical mounts at low beam heights. Slotted clamping forks secure pedestals anywhere on an optical table. This product is also available in 10-piece saving pack
Resources & Downloads
2D Product Drawings
PS Posts-S(175.7 kB, PDF)
Other
PS-0.5 RoHS Certificate(277.5 kB, PDF) PS-0-5_RoHS2021.pdf(680.7 kB, PDF)
