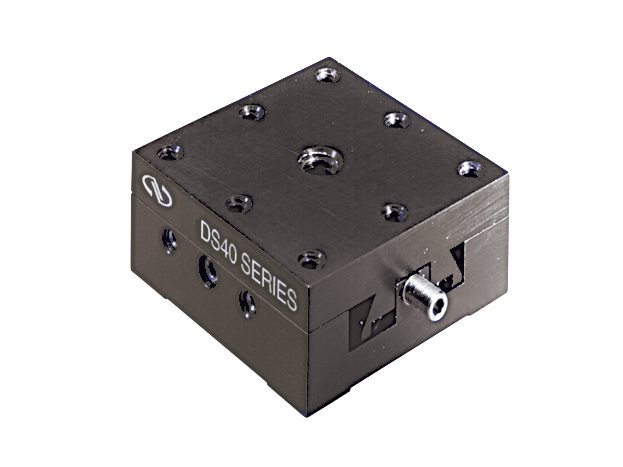

Manual Linear Stage, Dovetail, 0.55 in. Travel, 1.57 x 1.57 in.

Technical Specs

  • Axes of Travel
    X
  • Maximum Stage Travel
    14 mm
  • Thread Type
    6-32 and 1/4-20
  • Load Capacity
    67 N
  • Maximum Centered Load
    5 kg
  • Material
    Aluminum
  • Bearings
    Dovetail Slide
  • Drive Location
    Center drive
  • Platform Size
    40 x 40 mm
  • Sensitivity
    1 µm
  • Recommended Actuators
    Included
  • Travel Requirement
    12.7 to 25.4 mm
