Double Slotted Base, 0.68 in. Range, Stainless Steel
Double Slotted Base, 0.68 in. Range, Stainless Steel
Model: B-1A
Product Series Overview

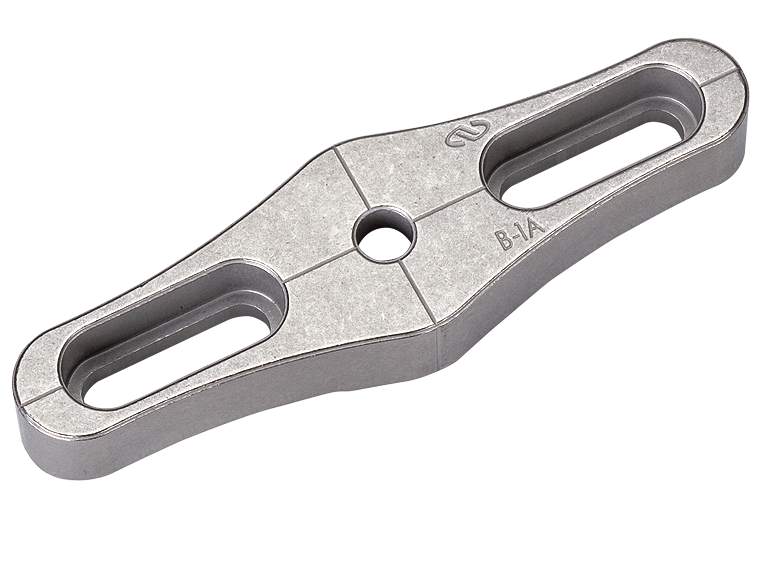

Stainless Steel Slotted BasesThe B-1A is an in-line double slotted post holder base made from stainless steel. The in-line slot configuration allows the base to translated linearly with out rotation. The base also has a bottom-side counterbored through hole to allow attachment of post holders like the VPH-3 or posts like the PS-3T. The base rests on four pads to provide long term stability.This product is also available in 10-piece saving pack
Resources & Downloads
2D Product Drawings
B-1A-S(146.6 kB, PDF)
Other
B-1A RoHS Certificate(277.6 kB, PDF) B-1A_RoHS2021.pdf(679.7 kB, PDF)
