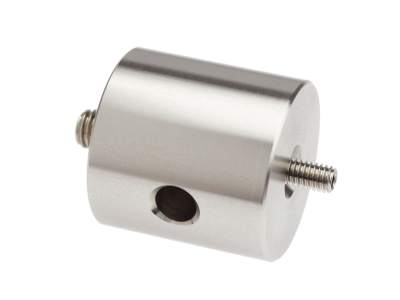

Table Mount Adaptor, 1.0 in. Diameter Pedestals, 8-32 to 1/4-20
Table Mount Adaptor, 1.0 in. Diameter Pedestals, 8-32 to 1/4-20
Model: PS-1T
Product Series Overview
1.0 in. Post Spacers & Thread AdaptersThe PS-1T Table Mount Adaptor allows mounting of PS-series Pedestal Extensions directly to an optical table without a clamp fork. This adaptor is a 1.0 in. high Pedestal Extension Post with a ¼-20 thread on one end and an 8-32 thread on the other. Threaded studs are included. The PS-1T is necessary when several pedestal posts need to be mounted as close as possible (1.0 in. apart) on an optical table. Note that the fork-clamp pedestal posts, because of their 1.25 in. diameter base, cannot be mounted this close together.
Resources & Downloads
Other
PS-1T RoHS Certificate(280.3 kB, PDF) PS-1T_RoHS2021.pdf(689.6 kB, PDF)
2D Product Drawings
PS-1T(133.6 kB, PDF)
