Thread Adaptor, 1.0 in. Diameter Pedestals, 8-32 to 1/4-20
Thread Adaptor, 1.0 in. Diameter Pedestals, 8-32 to 1/4-20
Model: SS-1-B
Product Series Overview

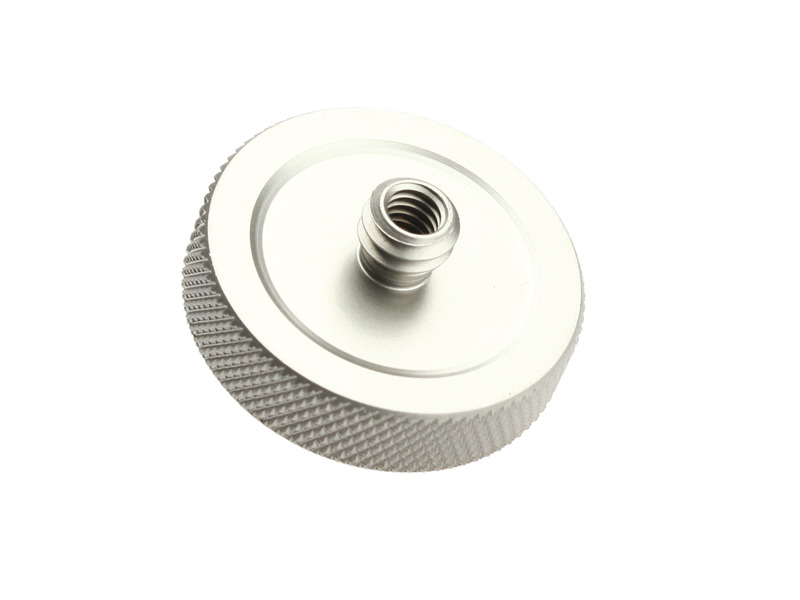

1.0 in. Post Spacers & Thread AdaptersThe SS-1-B Thread Adaptor converts a 1/4-20 hole into an 8-32 for mounting components close to the table surface. 1.0 in. diameter with a 1/4 in. height.
Resources & Downloads
2D Product Drawings
Ss1a-S(152.5 kB, PDF)
Other
SS-1-B RoHS Certificate(277.4 kB, PDF) SS-1-B_RoHS2021.pdf(679.7 kB, PDF)
