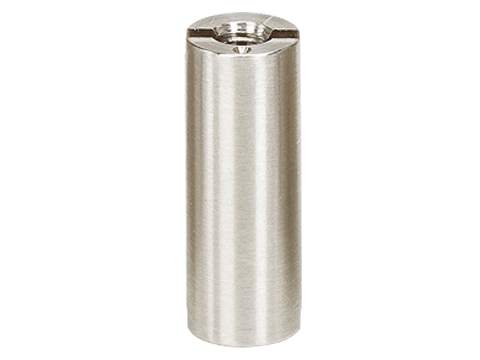

Thread Adaptor, Optical Pedestal Cube, 8-32 Thread
Thread Adaptor, Optical Pedestal Cube, 8-32 Thread
Model: PS-QA
In Stock
Product Series Overview
1.0 in. Optical Pedestal CubesThe PS-QA Pedistal Cube Thread Adaptor fits into either of the two counterbores on the PS-Q cube. The thread adaptor allows the cube to be rotated to the same orientation as any of the cubes below it while also providing a threaded hole on top of the cube for further stacking of posts or other cubes.
Resources & Downloads
2D Product Drawings
90010470 DRAWING(74.1 kB, PDF)
Other
PS-QA RoHS Certificate(279.1 kB, PDF) PS-QA_RoHS2021.pdf(685.4 kB, PDF)
