Thread Adaptor, Optical Pedestal Cube, M4 Thread
Thread Adaptor, Optical Pedestal Cube, M4 Thread
Model: M-PS-QA
Product Series Overview

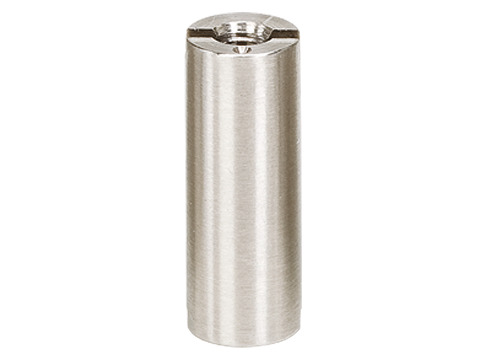

1.0 in. Optical Pedestal CubesThe M-PS-QA Pedestal Cube Thread Adaptor fits into either of the two M4 counterbores on the M-PS-Q cube. The thread adaptor allows the cube to be rotated to the same orientation as any of the cubes below it while also providing a threaded hole on top of the cube for further stacking of posts or other cubes.
Resources & Downloads
2D Product Drawings
90010470 DRAWING(74.1 kB, PDF)
Other
M-PS-QA RoHS Certificate(279 kB, PDF) M-PS-QA_RoHS2021.pdf(682.4 kB, PDF)
