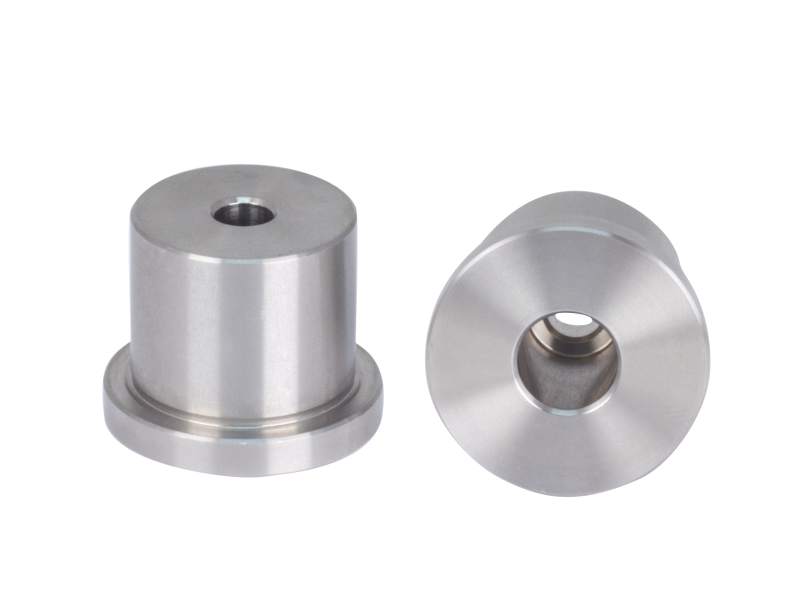

Optical Pedestal Base, 1.0 in. Height, 1 in. Diameter, 1/4-20 (M6) CLR

Optical Pedestal Base, 1.0 in. Height, 1 in. Diameter, 1/4-20 (M6) CLR

Model: PS-B-1

$22

In Stock

Compare

Add to List

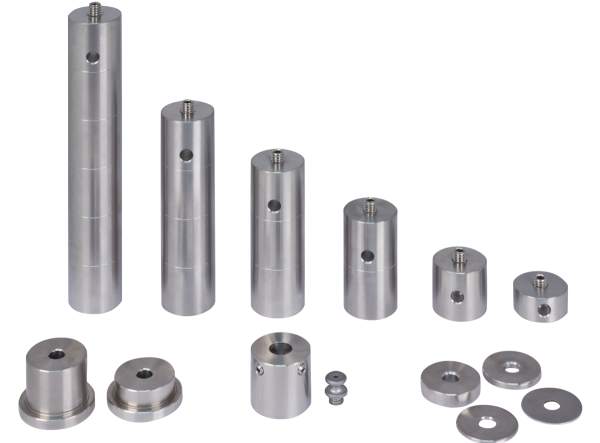

Product Series Overview

Pedestal Base Adapters

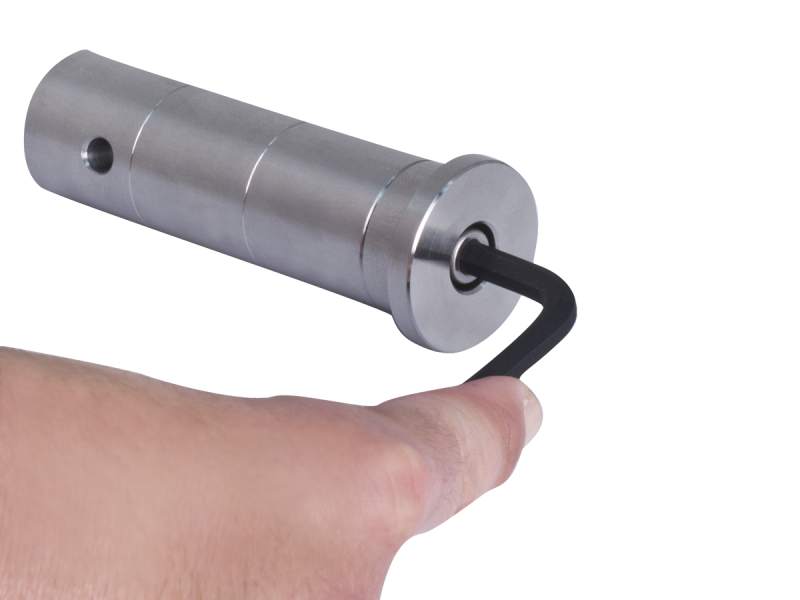

The PS-B-1 Pedestal Base has a 1/4-20 thru-hole and can be used for turning TPS Series Posts into optical pedestals. 1.0 in. (25.4 mm) height.

Specifications

Technical Specs

Type

Pedestal Base Adapter
Height

25.4 mm
Thread Type

1/4-20 (M6) CLR
Material

Stainless Steel

Diameter

25.4 mm
Pack Quantity

1

Type

Pedestal Base Adapter
Height

25.4 mm
Thread Type

1/4-20 (M6) CLR
Material

Stainless Steel

Diameter

25.4 mm
Pack Quantity

1

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

PS-B Bases-S (141.8 kB, PDF)

Other

PS-B-1 RoHS Certificate (278 kB, PDF)
PS-B-1_RoHS2021.pdf (681.3 kB, PDF)
