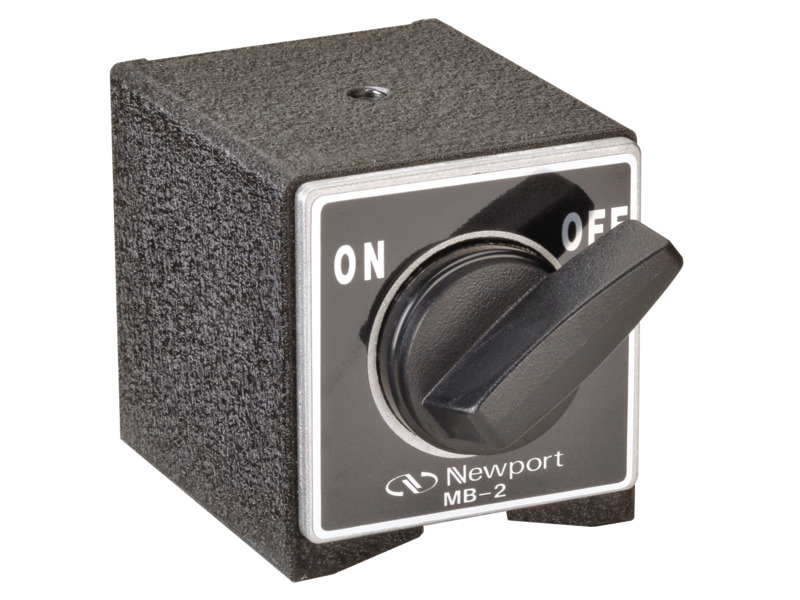

Standard Magnetic Base, 90 lb. Holding Force, 1/4-20 Thread

Standard Magnetic Base, 90 lb. Holding Force, 1/4-20 Thread

Model: MB-2

$74

In Stock

Compare

Add to List

Product Series Overview

Hand Switch Magnetic Bases

The MB-2 Standard Magnetic Base provides a single 1/4-20 tapped hole ideal for mounting VPH or VPT Series Post Holders.

Specifications

Technical Specs

Type

Magnetic Base
Thread Type

1/4-20

Holding Force

400 N

Type

Magnetic Base
Thread Type

1/4-20

Holding Force

400 N

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

MB-2-S (81.9 kB, PDF)

Other

MB-2 RoHS Certificate (278.5 kB, PDF)
