XYZ Linear Stage, Crossed-Roller, 1 in. Travel, 8-32, 1/4-20

Model: 9067-XYZ-R

$2,074

In Stock

Compare

Add to List

Product Series Overview

1.0 in. Travel High Density Mounting Crossed-Roller Bearing Stages

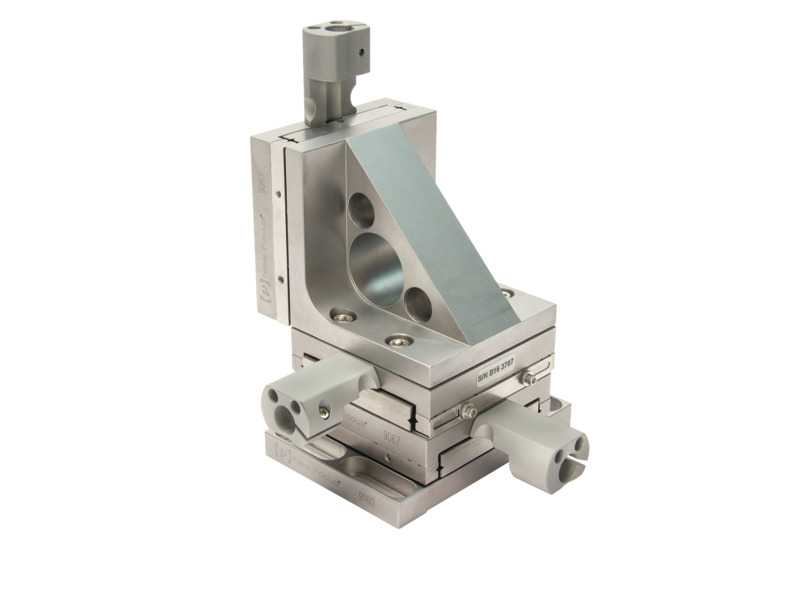

The 9067-XYZ-R Right-Handed Stainless Steel Crossed-Roller XYZ Translation Stage is a 1.0 inch travel linear translation stage that allows you to adjust the back actuator with your right hand and adjust the side actuator with your left hand. 9067 series stages feature a generous pattern of twenty 8-32 and twenty one 1/4-20 threaded mounting holes. Actuators are not included. Please see specifications for recommended actuators.

Specifications

Technical Specs

Axes of Travel

X, Y, Z
Orientation

Right-Handed
Maximum Stage Travel

25.4 mm
Centered Normal Load Capacity

222 N
Vertical Axial Load Capacity

80 N
Angular Deviation

150 µrad
Material

Stainless Steel

Bearings

Crossed-Roller Bearings
Thread Type

8-32 and 1/4-20
Recommended Adjustment Screw

9302
Recommended Vernier Micrometer

SM-25
Recommended Piezo Actuator

8303

Axes of Travel

X, Y, Z
Orientation

Right-Handed
Maximum Stage Travel

25.4 mm
Centered Normal Load Capacity

222 N
Vertical Axial Load Capacity

80 N
Angular Deviation

150 µrad
Material

Stainless Steel

Bearings

Crossed-Roller Bearings
Thread Type

8-32 and 1/4-20
Recommended Adjustment Screw

9302
Recommended Vernier Micrometer

SM-25
Recommended Piezo Actuator

8303
