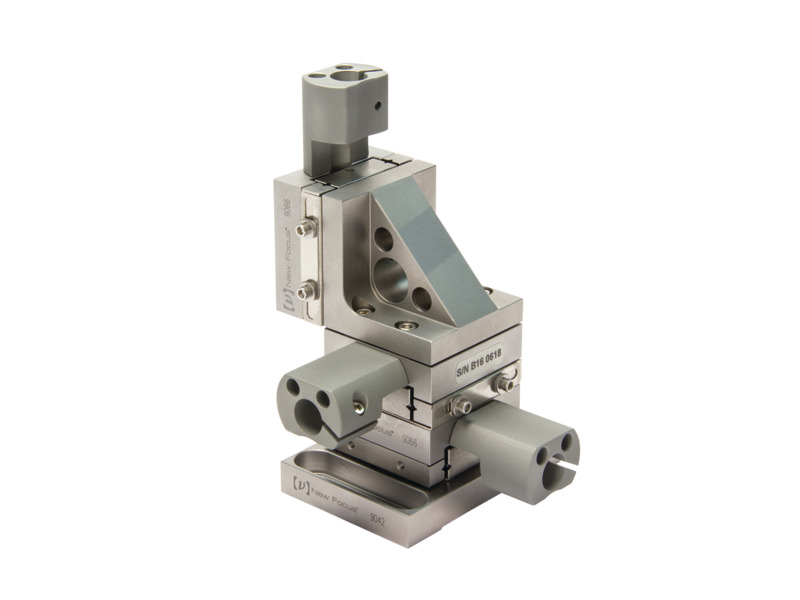

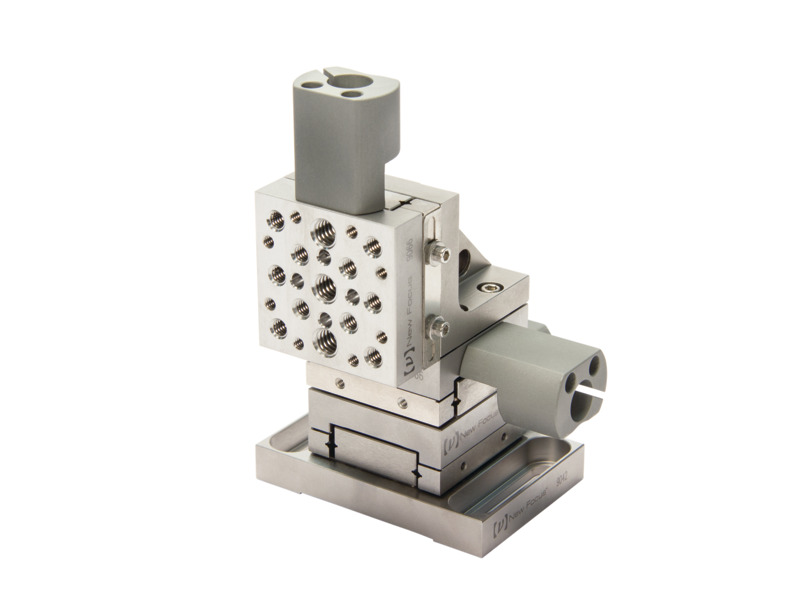

XYZ Linear Stage, Crossed-Roller, 0.5 in. Travel, 4-40, 8-32, 1/4-20

Model: 9066-XYZ-R

$1,673

In Stock

Compare

Add to List

Product Series Overview

0.5 in. Travel High Density Mounting Crossed-Roller Bearing Stages

The 9066-XYZ-R Right-Handed Stainless Steel Crossed-Roller XYZ Translation Stage is a 0.5 inch travel linear translation stage that allows you to adjust the back actuator with your right hand and adjust the side actuator with your left hand. 9066 series stages feature a generous pattern of eight 4-40. ten 8-32 and three 1/4-20 threaded mounting holes. Actuators are not included. Please see specifications for recommended actuators.

Specifications

Technical Specs

Axes of Travel

X, Y, Z
Orientation

Right-Handed
Maximum Stage Travel

12.7 mm
Centered Normal Load Capacity

111 N
Vertical Axial Load Capacity

44.5 N
Angular Deviation

150 µrad
Material

Stainless Steel

Bearings

Crossed-Roller Bearings
Thread Type

4-40, 8-32 and 1/4-20
Recommended Adjustment Screw

9301
Recommended Vernier Micrometer

SM-13
Recommended Piezo Actuator

8301NF

Axes of Travel

X, Y, Z
Orientation

Right-Handed
Maximum Stage Travel

12.7 mm
Centered Normal Load Capacity

111 N
Vertical Axial Load Capacity

44.5 N
Angular Deviation

150 µrad
Material

Stainless Steel

Bearings

Crossed-Roller Bearings
Thread Type

4-40, 8-32 and 1/4-20
Recommended Adjustment Screw

9301
Recommended Vernier Micrometer

SM-13
Recommended Piezo Actuator

8301NF

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9066-XYZ-L (367.3 kB, PDF)
9066-XYZ-La-Drawing.pdf (187.9 kB, PDF)

Manuals

9066 & 9067 User Manual RevB (2.4 MB, PDF)
9066-9067 User Manual.pdf (1.8 MB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock	$19.40
SK-25A Black Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL	In Stock	$72
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$38
BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	In Stock	$35
TA-M6Q20-10 Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL	In Stock	$41

Similar

Description	Compatibility	Avail.	Price
9066-X Manual Linear Stage, Crossed-Roller, 0.5 in., 4-40, 8-32, 1/4-20	IMPERIAL	In Stock	$575
9066-COM Manual Linear Stage, Crossed-Roller, 0.5 in., 4-40, 8-32, 1/4-20, No Baseplate	IMPERIAL	In Stock	$498
9066-XY XY Linear Stage, Crossed-Roller, 0.5 in. Travel, 4-40, 8-32, 1/4-20	IMPERIAL	In Stock	$1,058
9066-XZ XZ Linear Stage, Crossed-Roller, 0.5 in. Travel, 4-40, 8-32, 1/4-20	IMPERIAL	In Stock	$1,183
9067-XYZ-R XYZ Linear Stage, Crossed-Roller, 1 in. Travel, 8-32, 1/4-20	IMPERIAL	In Stock	$2,074

Compatible

Description	Compatibility	Avail.	Price
9042 Baseplate, 9066 Series Stages, 4-40	IMPERIAL	2 Weeks	$72
9041 90 Degree Angle Bracket, 9066 Series Stages, 8-32 and 1/4-20	IMPERIAL	In Stock	$133
SM-13 Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI	UNIVERSAL	In Stock	$100
9301 Adjustment Screw, Knob, Braked, 12.7 mm Travel, Ball Tip, 1/4-80	UNIVERSAL	In Stock	$43
8301NF Picomotor Piezo Linear Actuator, 0.5 in. Travel, 30 nm Resolution, 9.5 mm Shank	UNIVERSAL	In Stock	$720
