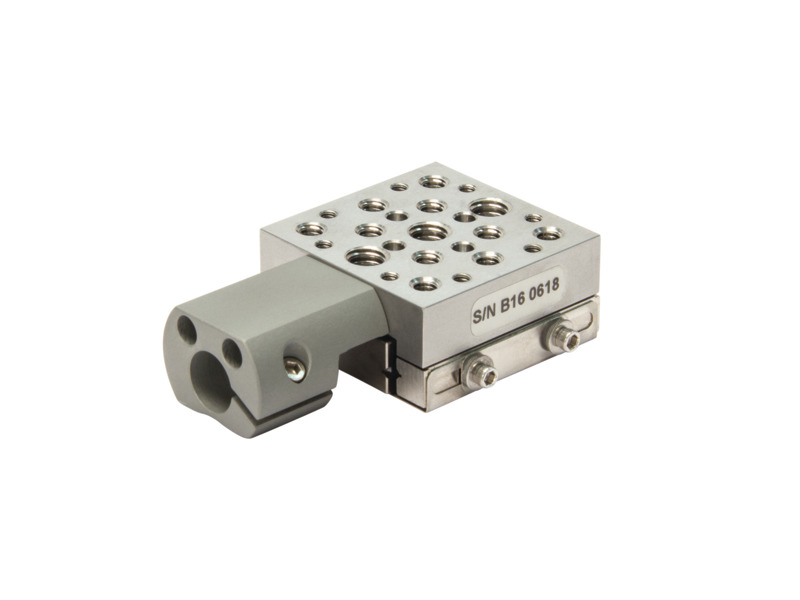

Manual Linear Stage, Crossed-Roller, 0.5 in., 4-40, 8-32, 1/4-20, No Baseplate

Technical Specs

  • Stage Type
    Low Profile
  • Axes of Travel
    X
  • Maximum Stage Travel
    12.7 mm
  • Thread Type
    4-40, 8-32 and 1/4-20
  • Load Capacity
    111 N
  • Vertical Load Capacity
    44.5 N
  • Angular Deviation
    150 µrad
  • Material
    Stainless Steel
  • Bearings
    Crossed-Roller Bearings
  • Recommended Adjustment Screw
  • Recommended Vernier Micrometer
  • Recommended Piezo Actuator
