Baseplate, 9066 Series Stages, 4-40

Baseplate, 9066 Series Stages, 4-40

Model: 9042

$72

Show

Compare

Add to List

Product Series Overview

Translation Stage Base Plates, 906x Series

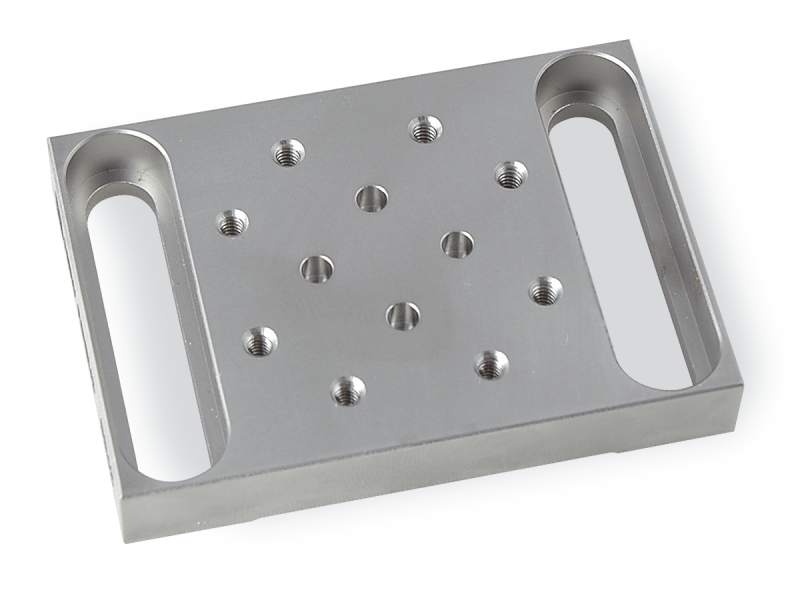

The 9042 Baseplate is used with the Model 9066 series of crossed-roller-bearing stages to create a stage with conventional mounting slots. 4-40 thru holes

Specifications

Technical Specs

Type

Base Plate
Height

9.5 mm
Length

63.5 mm
Width

44.5 mm

Thread Type

4-40
Material

Stainless Steel
Use

9066 Series Stage

Type

Base Plate
Height

9.5 mm
Length

63.5 mm
Width

44.5 mm

Thread Type

4-40
Material

Stainless Steel
Use

9066 Series Stage
