Baseplate, 9066-M Series Stages, M2.5

Baseplate, 9066-M Series Stages, M2.5

Model: 9042-M

$84

In Stock

Compare

Add to List

Product Series Overview

Translation Stage Base Plates, 906x Series

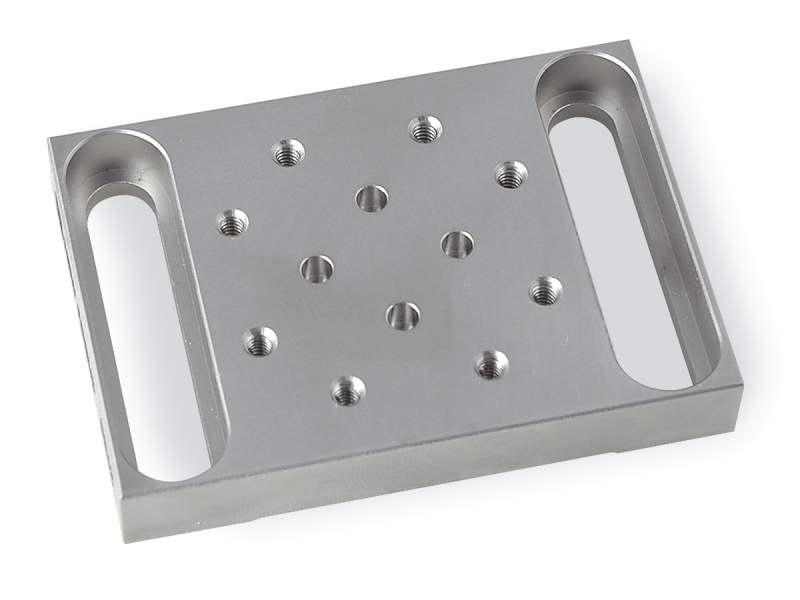

The 9042-M Baseplate is used with the Model 9066-M series of crossed-roller-bearing stages to create a stage with conventional mounting slots. M2.5 thru holes

Specifications

Technical Specs

Type

Base Plate
Height

9.5 mm
Length

63.5 mm
Width

44.5 mm

Thread Type

M2.5
Material

Stainless Steel
Use

9066 Series Stage

Type

Base Plate
Height

9.5 mm
Length

63.5 mm
Width

44.5 mm

Thread Type

M2.5
Material

Stainless Steel
Use

9066 Series Stage
