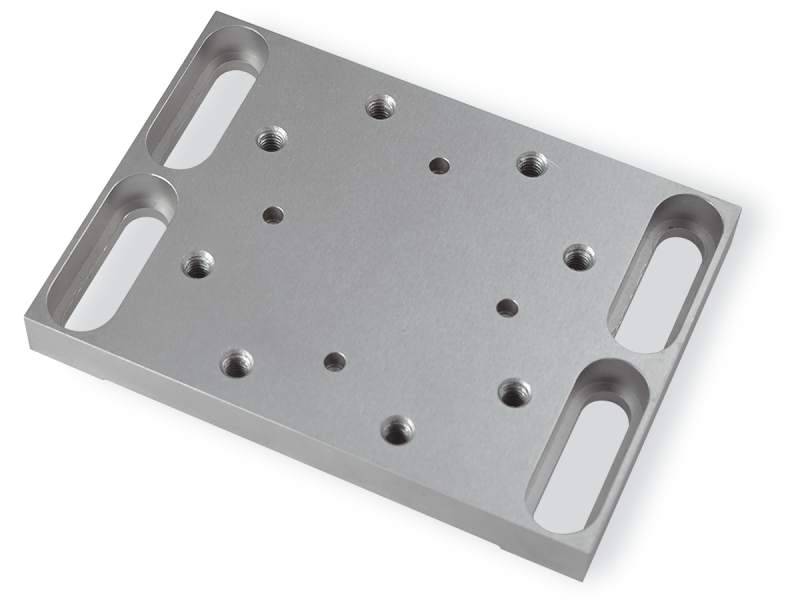

Baseplate, 9067-M Series Stages, M4

Model: 9160-M

$92.00

In Stock

Compare

Add to List

Product Series Overview

Translation Stage Base Plates, 906x Series

The 9160-M Baseplate is used with the Model 9067-M series of crossed-roller-bearing stages to create a stage with conventional mounting slots. M4 thru holes

Specifications

Technical Specs

Type

Base Plate
Height

9.5 mm
Length

88.9 mm
Width

63.5 mm

Thread Type

M4
Material

Stainless Steel
Use

9067 Series Stage

Type

Base Plate
Height

9.5 mm
Length

88.9 mm
Width

63.5 mm

Thread Type

M4
Material

Stainless Steel
Use

9067 Series Stage

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9160RC_2005 (225.5 kB, PDF)

Other

910105_RoHS2021.pdf (687.4 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
M-BDK-1 Ball Driver Tool Set, Includes: 1.5, 2, 2.5, 3, 4 & 5 mm Wrenches	METRIC	In Stock	$39.00
TA-M6Q20-10 Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL	In Stock	$42.00
BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	In Stock	$36.00
M-SK-M6A Black Oxide Screw Kit, M6, Assortment, Qty 261	UNIVERSAL	In Stock	$74.00
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock	$20.00
