Manual Linear Stage, Crossed-Roller, 25.4 mm, M4, M6

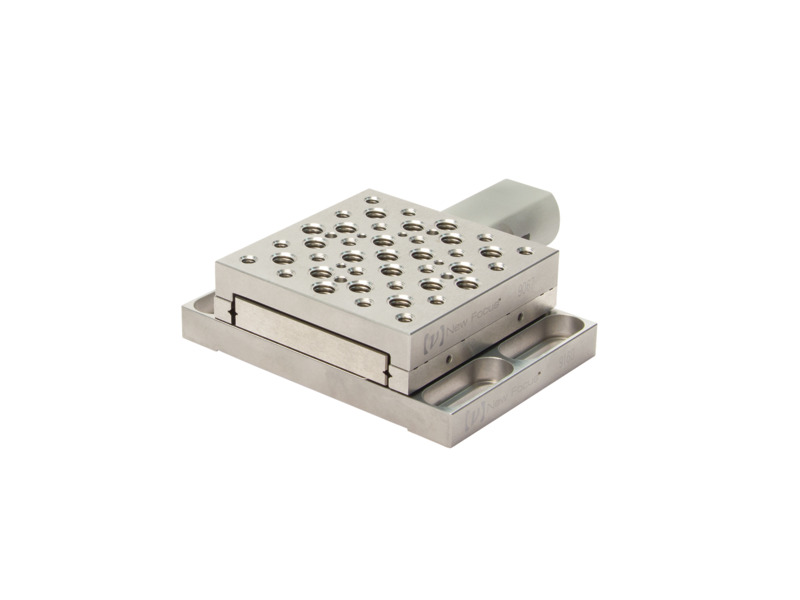

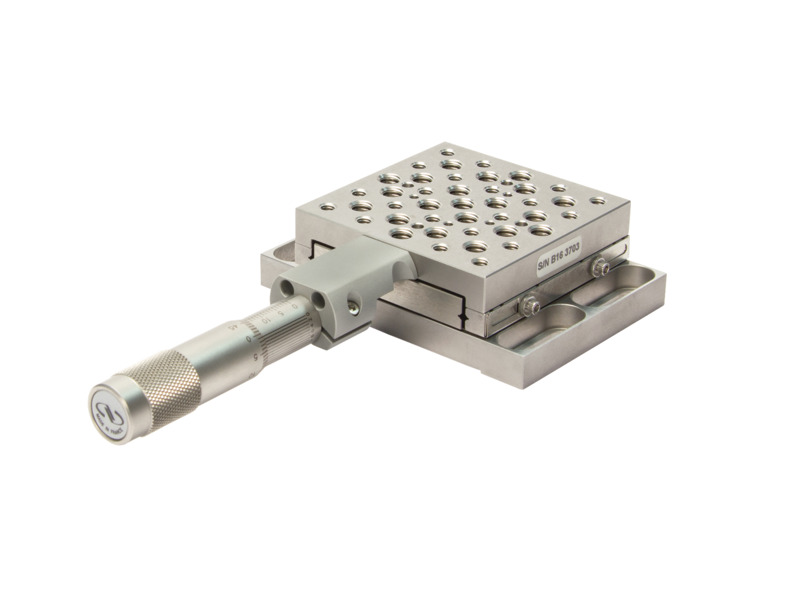

The 9067-X-M Stainless Steel Crossed-Roller Translation Stage is a 25.4 mm travel linear translation stage that provides improved stability because the weight of these stainless steel stages is held by the actuator and not the spring. This provides the convenience of being able to use these X-configured stages in the Z configuration. 9067 series stages feature a generous pattern of twenty M4 and twenty one M6 threaded mounting holes. Actuators are not included. Please see specifications for recommended actuators.
Resources & Downloads
2D Product Drawings
9067-X(112.1 kB, PDF) 9067-Xa-Drawing.pdf(134.1 kB, PDF)
