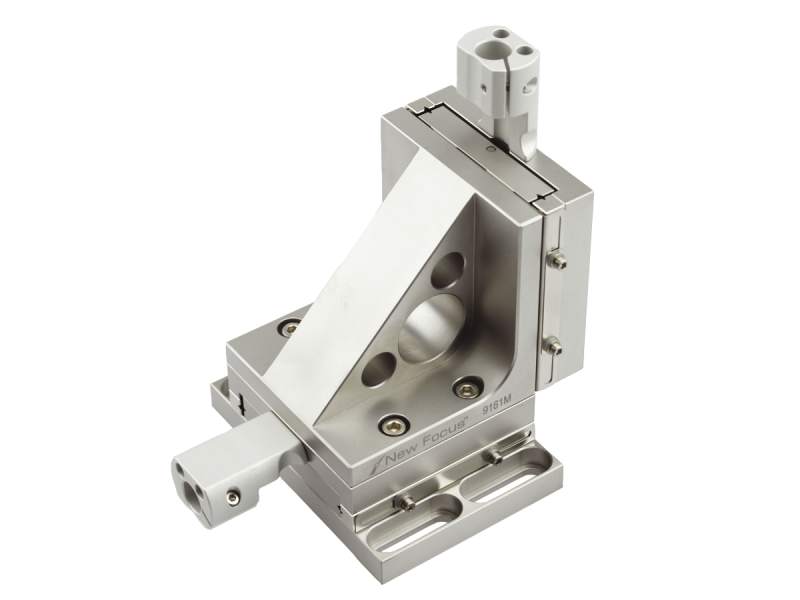

XZ Linear Stage, Crossed-Roller, 25.4 mm Travel, M4, M6

Model: 9067-XZ-M

$1,489

In Stock

Compare

Add to List

Product Series Overview

1.0 in. Travel High Density Mounting Crossed-Roller Bearing Stages

The 9067-XZ-M Stainless Steel Crossed-Roller Translation Stage is a 25.4 mm travel linear translation stage that provides low-profile, high-stability, linear translation for systems that do not need vertical adjustment. 9067 series stages feature a generous pattern of twenty M4 and twenty one M6 threaded mounting holes. Actuators are not included. Please see specifications for recommended actuators.

Specifications

Technical Specs

Axes of Travel

X, Z
Maximum Stage Travel

25.4 mm
Centered Normal Load Capacity

222 N
Vertical Axial Load Capacity

80 N
Angular Deviation

150 µrad
Material

Stainless Steel

Bearings

Crossed-Roller Bearings
Thread Type

M4 and M6
Recommended Adjustment Screw

9302
Recommended Vernier Micrometer

SM-25
Recommended Piezo Actuator

8303

Axes of Travel

X, Z
Maximum Stage Travel

25.4 mm
Centered Normal Load Capacity

222 N
Vertical Axial Load Capacity

80 N
Angular Deviation

150 µrad
Material

Stainless Steel

Bearings

Crossed-Roller Bearings
Thread Type

M4 and M6
Recommended Adjustment Screw

9302
Recommended Vernier Micrometer

SM-25
Recommended Piezo Actuator

8303

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9067-XZ (127 kB, PDF)
9067-XZa-Drawing.pdf (170.3 kB, PDF)

Manuals

9066 & 9067 User Manual RevB (2.4 MB, PDF)
