XYZ Linear Stage, Crossed-Roller, 25.4 mm Travel, M4, M6

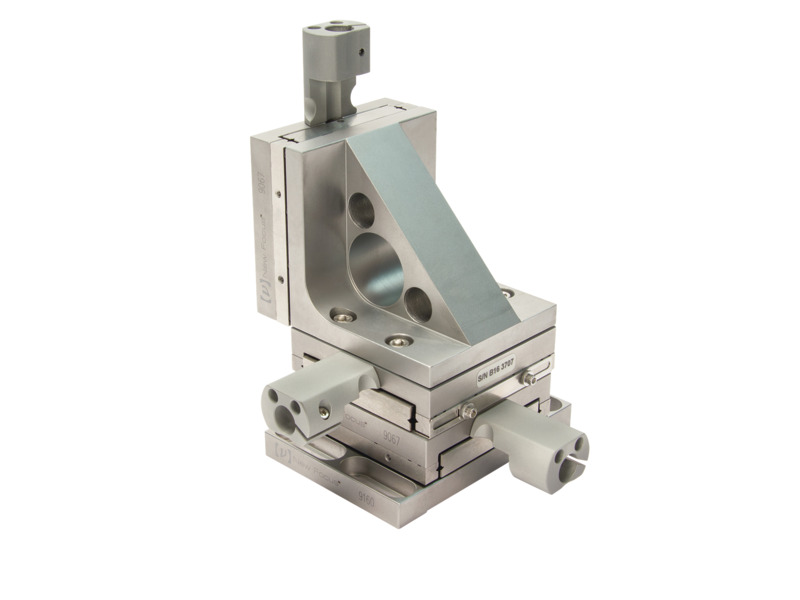

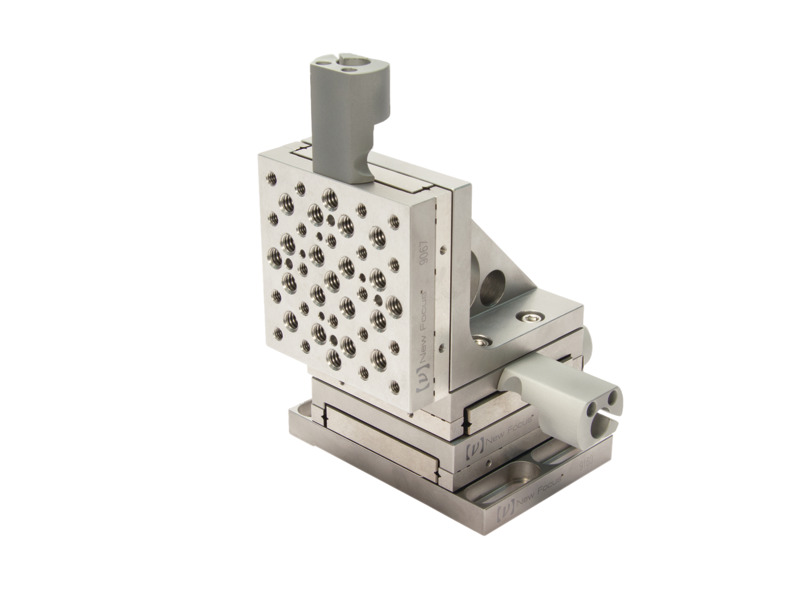

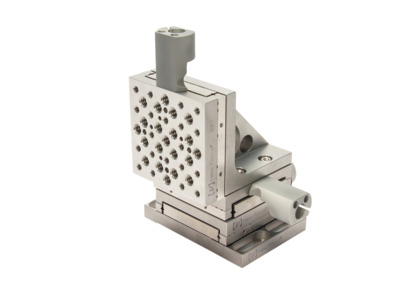

The 9067-XYZ-M Right-Handed Stainless Steel Crossed-Roller XYZ Translation Stage is a 25.4 mm travel linear translation stage that allows you to adjust the back actuator with your right hand and adjust the side actuator with your left hand. 9067 series stages feature a generous pattern of twenty M4 and twenty one M6 threaded mounting holes. Actuators are not included. Please see specifications for recommended actuators.
