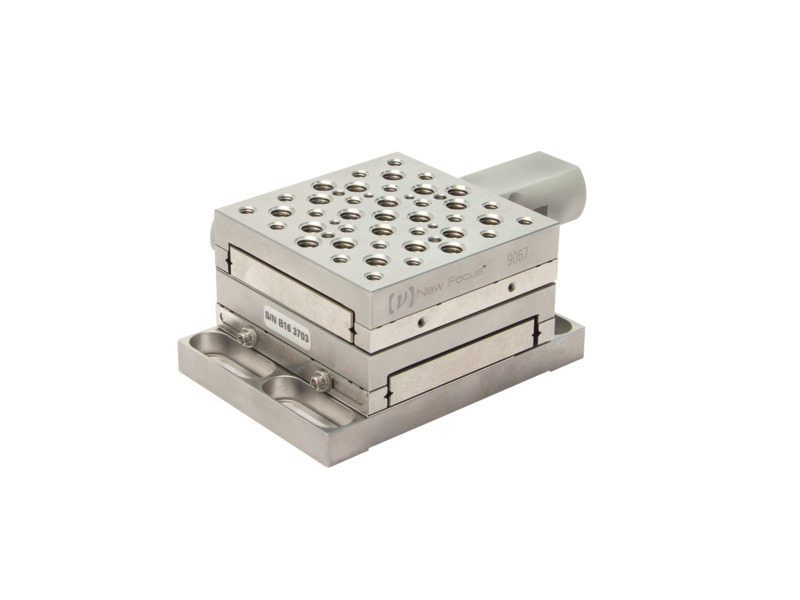

XY Linear Stage, Crossed-Roller Bearings, 25.4 mm Travel, M4 and M6

Technical Specs

  • Axes of Travel
    X, Y
  • Orientation
    Right-Handed
  • Maximum Stage Travel
    25.4 mm
  • Thread Type
    M4 and M6
  • Load Capacity
    222 N
  • Vertical Load Capacity
    80 N
  • Angular Deviation
    150 µrad
  • Material
    Stainless Steel
  • Bearings
    Crossed-Roller Bearings
  • Recommended Adjustment Screw
  • Recommended Vernier Micrometer
  • Recommended Piezo Actuator
