Manual Linear Stage, Crossed-Roller, 12.7 mm, M2.5, M4, M6

Model: 9066-X-M

$575

In Stock

Compare

Add to List

Product Series Overview

0.5 in. Travel High Density Mounting Crossed-Roller Bearing Stages

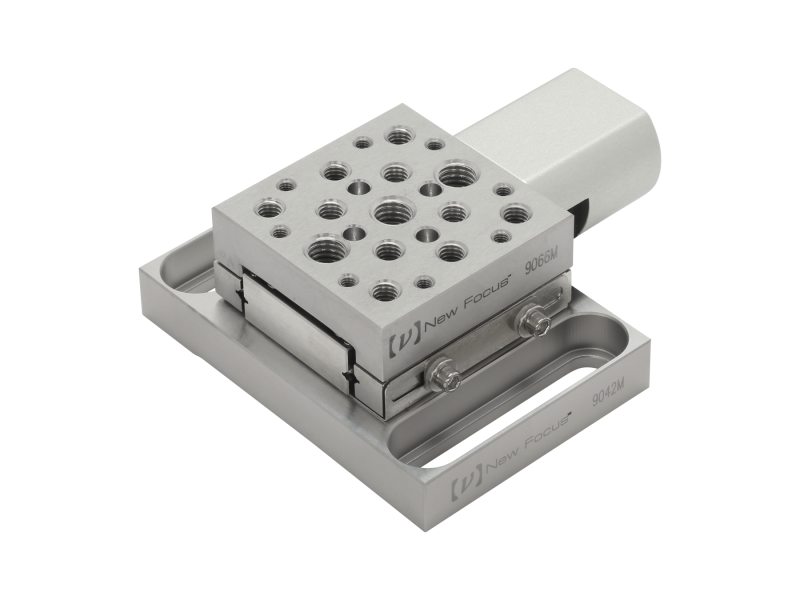

The 9066-X-M Stainless Steel Crossed-Roller Translation Stage is a 12.7 mm travel linear translation stage that provides improved stability because the weight of these stainless steel stages is held by the actuator and not the spring. This provides the convenience of being able to use these X-configured stages in the Z configuration. 9066 series stages feature a generous pattern of eight M2.5. ten M4 and three M6 threaded mounting holes. Actuators are not included. Please see specifications for recommended actuators.

Specifications

Technical Specs

Axes of Travel

X
Maximum Stage Travel

12.7 mm
Centered Normal Load Capacity

111 N
Vertical Axial Load Capacity

44.5 N
Angular Deviation

150 µrad
Material

Stainless Steel

Bearings

Crossed-Roller Bearings
Thread Type

M2.5, M4 and M6
Recommended Adjustment Screw

9301
Recommended Vernier Micrometer

SM-13
Recommended Piezo Actuator

8301NF

Axes of Travel

X
Maximum Stage Travel

12.7 mm
Centered Normal Load Capacity

111 N
Vertical Axial Load Capacity

44.5 N
Angular Deviation

150 µrad
Material

Stainless Steel

Bearings

Crossed-Roller Bearings
Thread Type

M2.5, M4 and M6
Recommended Adjustment Screw

9301
Recommended Vernier Micrometer

SM-13
Recommended Piezo Actuator

8301NF

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9066-X (106.6 kB, PDF)
9066-Xa-Drawing.pdf (126.1 kB, PDF)

Manuals

9066 & 9067 User Manual RevB (2.4 MB, PDF)
9066-9067 User Manual.pdf (1.8 MB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	In Stock	$35
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock	$19.40
M-BDK-1 Ball Driver Tool Set, Includes: 1.5, 2, 2.5, 3, 4 & 5 mm Wrenches	METRIC	In Stock	$38
M-SK-M6A Black Oxide Screw Kit, M6, Assortment, Qty 261	UNIVERSAL	In Stock	$72
TA-M6Q20-10 Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL	In Stock	$41

Similar

Description	Compatibility	Avail.	Price
9066-COM-M Manual Linear Stage, Crossed-Roller, 12.7 mm, M2.5, M4, M6, No Baseplate	METRIC	4 Weeks	$498
9067-X-M Manual Linear Stage, Crossed-Roller, 25.4 mm, M4, M6	METRIC	3 Weeks	$714
9066-XY-M XY Linear Stage, Crossed-Roller, 12.7 mm Travel, M2.5, M4, M6	METRIC	In Stock	$1,037
9066-XYZ-M XYZ Linear Stage, Crossed-Roller, 12.7 mm Travel, M2.5, M4, M6	METRIC	In Stock	$1,673
9066-XZ-M XZ Linear Stage, Crossed-Roller, 12.7 mm Travel, M2.5, M4, M6	METRIC	Show	$1,183

Compatible

Description	Compatibility	Avail.	Price
9042 Baseplate, 9066 Series Stages, 4-40	IMPERIAL	2 Weeks	$72
9041 90 Degree Angle Bracket, 9066 Series Stages, 8-32 and 1/4-20	IMPERIAL	In Stock	$133
SM-13 Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI	UNIVERSAL	In Stock	$100
9301 Adjustment Screw, Knob, Braked, 12.7 mm Travel, Ball Tip, 1/4-80	UNIVERSAL	In Stock	$43
8301NF Picomotor Piezo Linear Actuator, 0.5 in. Travel, 30 nm Resolution, 9.5 mm Shank	UNIVERSAL	In Stock	$720
