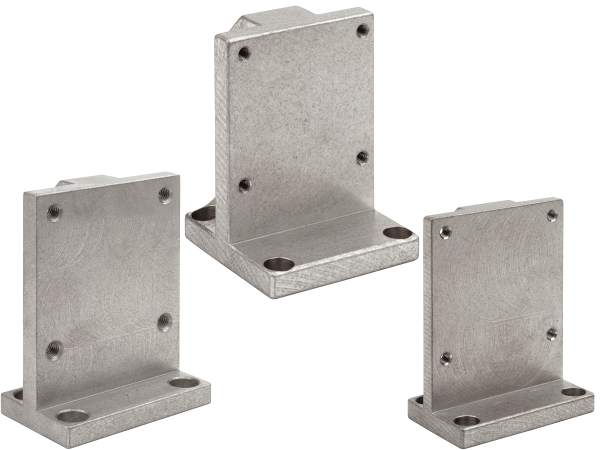

sds series 90 degree angle brackets with three angle bracket sizes shown

Overview

Stainless Steel SDS Series 90° Angle Brackets are used to build extra stiff multi-axis stage assemblies. These stainless steel brackets offer more rigidity than standard aluminum brackets and offer tapped holes for mounting industry-standard 25x25-, 40x40- or 65x65-mm stages.

Stainless steel construction for high rigidity and a sturdy hold
Brackets for mounting 25x25 mm, 40x40 mm or 65x65 mm stages
Compatible with SDS and DS Series linear stages
Compatible with RS Series rotation stages & GON Series goniometers

See All Features

Products

Compare	Model	Compatibility	rankScore	Dimensions	Thread Type	Use	Availability	Price	Brand
M-SDS25-BK 90 Degree Angle Bracket, M-SDS25, M2 Thread $147 In Stock	M-SDS25-BK 90 Degree Angle Bracket, M-SDS25, M2 Thread	UNIVERSAL	1.0	35 x 25 x 25 mm	M2	25 x 25 mm Stages	In Stock	$147	Newport
M-SDS40-BK 90 Degree Angle Bracket, M-SDS40, M3 Thread $161 In Stock	M-SDS40-BK 90 Degree Angle Bracket, M-SDS40, M3 Thread	METRIC	1.0	54 x 40 x 24 mm	M3	40 x 40 mm Stages	In Stock	$161	Newport
M-SDS65-BK 90 Degree Angle Bracket, M-SDS65, M6 Thread $197 In Stock	M-SDS65-BK 90 Degree Angle Bracket, M-SDS65, M6 Thread	METRIC	1.0	86 x 65 x 40 mm	M6	65 x 65 mm Stages	In Stock	$197	Newport
SDS40-BK 90 Degree Angle Bracket, SDS40 Stage $161 Show	SDS40-BK 90 Degree Angle Bracket, SDS40 Stage	IMPERIAL	1.0	54 x 40 x 24 mm	6-32	40 x 40 mm Stages	Show	$161	Newport
SDS65-BK 90 Degree Angle Bracket, SDS65 Stage $197 In Stock	SDS65-BK 90 Degree Angle Bracket, SDS65 Stage	IMPERIAL	1.0	86 x 65 x 40 mm	1/4-20	65 x 65 mm Stages	In Stock	$197	Newport

Show All

Features

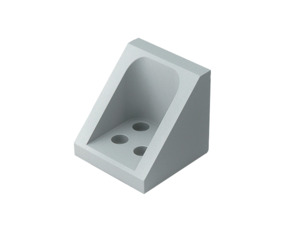

Stainless Steel for Increased Rigidity

Each bracket in this series is made of stainless steel, utilizing the material's increased stiffness for more rigid support of mounted stages an components, compared to aluminum brackets. There are four clearance holes for bolting the bracket to the supporting stage and four threaded holes for mounting the orthogonal stage or components directly.

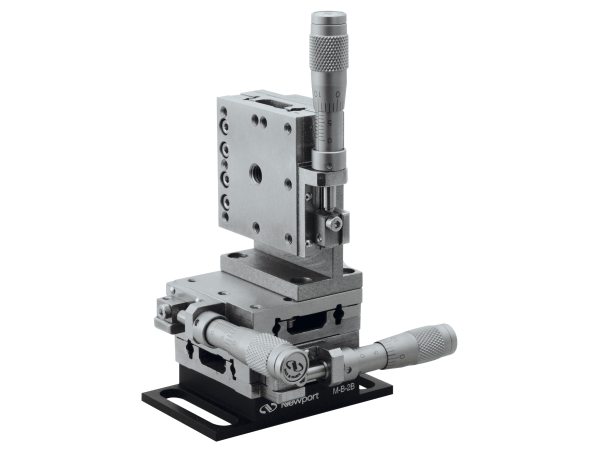

Designed to Build Multi-axis Configurations

These right angle brackets mount evenly with their compatible stages to offer mounting of additional stages such as GON series Goniometers, RS series rotation stages, DS series Dove-tail Stages or 9061, 2, or 3 series gothic arch stages.
