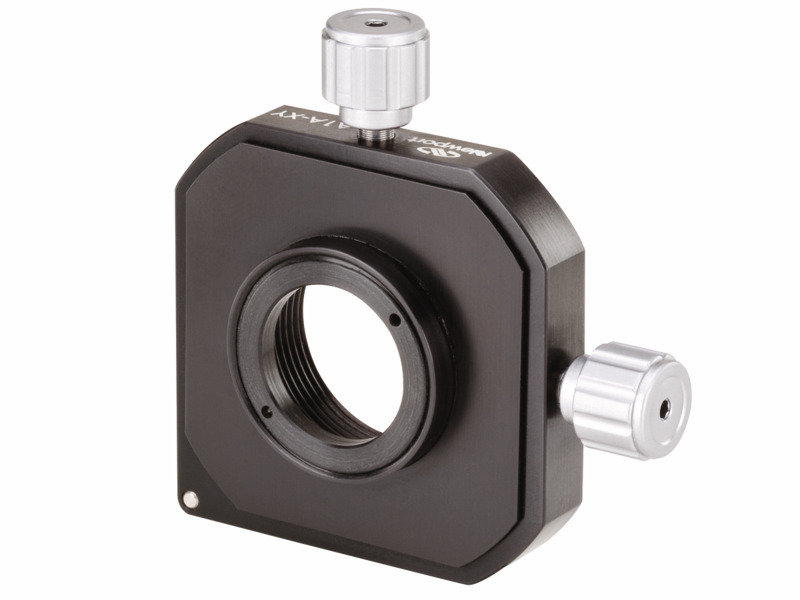

Compact Lens Positioner, XY, 1.0 in. Diameter, 100 TPI

Technical Specs

  • Type
    Lens Positioner
  • Optic Diameter
    25.4 mm
  • Clear Aperture
    19.2 mm
  • Retaining Ring
    2 Included
  • Retaining Ring Thread
    1.063-20
  • Thread Type
    8-32 and M4
  • Optical Axis Height
    25.4 mm
  • Adjustments
    XY
  • Adjustment Type
    Knob
  • Angular Range
    N/A
  • Adjustment Screw Thread
    100 TPI
  • Sensitivity
    0.71 µm
  • Material
    Aluminum
  • Travel, Z
    N/A
  • Travel, X
    ±1.6 mm
  • Travel, Y
    ±1.6 mm
