Compact Lens Positioner, XYZ θXθY, 1.0 in. Diameter, 100 TPI
Compact Lens Positioner, XYZ θXθY, 1.0 in. Diameter, 100 TPI
Model: LPV-1
Product Series Overview

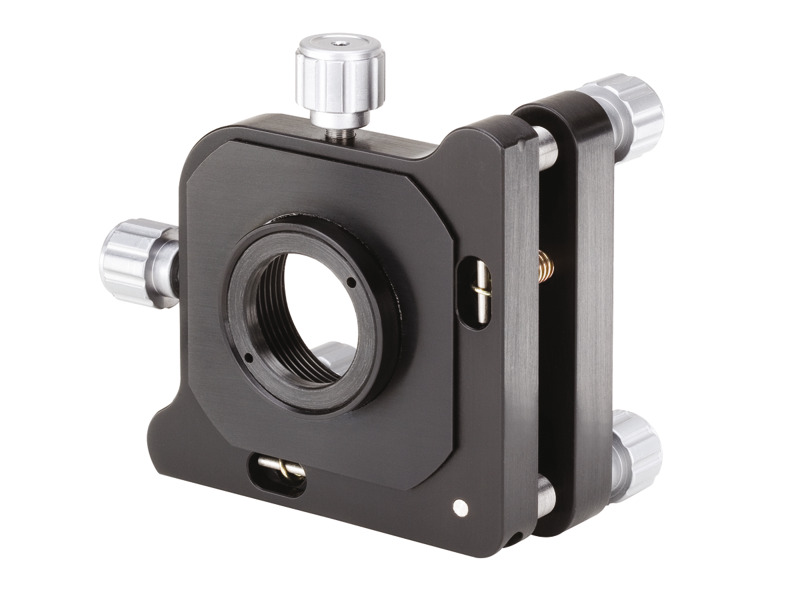

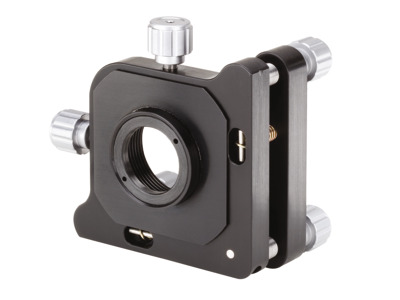

Compact Multi-Axis Lens PositionersThe LPV-1 Compact Lens Positioner provides an economical solution for applications requiring five (XYZ θXθY) axes of precision adjustment. Its compact size makes it ideal for OEM applications, or research projects with limited table space. Precise positioning is achieved with the integration of 100 TPI drive screws. Additionally, an integral 5/64 (M2) hex hole in the drive knobs allows for optional Allen key adjustment. Each unit is supplied with two non-marring Delrin retaining rings to safely secure optical elements with a maximum outer diameter of 1 inch (25.4 mm). The LPV-1 is post mounted via a counterbored hole sized for 8-32 or M4 screws.
Specifications
- TypeLens Positioner
- Optic Diameter25.4 mm
- Optical Axis Height31.8 mm
- AdjustmentsXYZ θXθY
- Adjustment TypeKnob
- Adjustment Screw Thread100 TPI
- Travel, X±1.6 mm
- Travel, Y±1.6 mm
- Travel, Z±4.6 mm
- Angular Range±5°
- Sensitivity0.71 µm (XYZ)
2 arc sec (θXθY) - Retaining Ring2 Included
- Retaining Ring Thread1.063-20
- Clear Aperture19.2 mm
- Thread Type8-32 (M4) CLR
- MaterialAluminum
