Polarizer Adaptor, 12.7 mm Optics to 1.063-20 Threaded Mounts

High Performance Optic Rotation Mounts

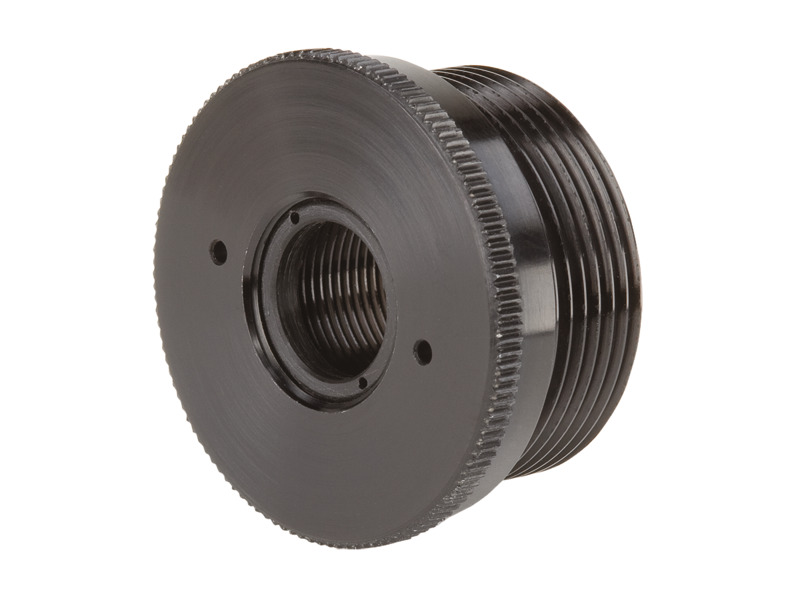

The PRA-05 Polarizer Adapter allows a 0.5 inch (12.7 mm) diameter polarizer or waveplate to be mounted to the RSP-1T. The PRA-05 screws into the rotator's 1.063-20 thread. The PRA-05 Adaptor includes a retaining ring.

Specifications

Technical Specs

Optic Diameter
12.7 mm
Thread Type
1.063-20
Material
Aluminum

Retaining Ring
(Included)

Optic Diameter
12.7 mm
Thread Type
1.063-20
Material
Aluminum

Retaining Ring
(Included)

Resources & Downloads

2D Product Drawings

PRA-05-294(129.1 kB, PDF)

Other

PRA-05 RoHS Certificate(279.2 kB, PDF)
PRA-05_RoHS2021.pdf(685.7 kB, PDF)
