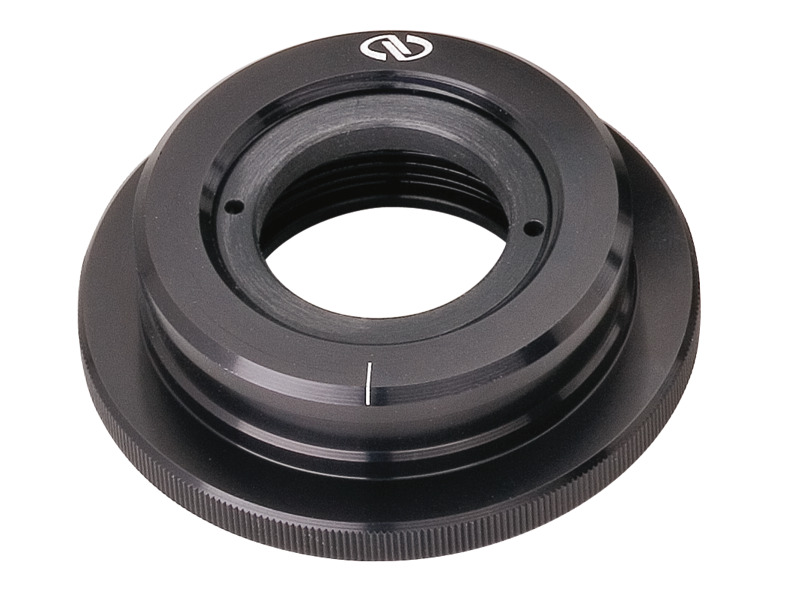

Optic Holder Cell, 1.0 in. Diameter Optics, Requires LM1-R Mount
Optic Holder Cell, 1.0 in. Diameter Optics, Requires LM1-R Mount
Model: LH1-1R
Product Series Overview
Nested Optic Rotation MountsThe LH1-1R Optic Holder Cell forms a convenient optical mounting system that speeds your experimental work. 1 inch (25.4 mm) lenses are mounted in a cell with a Delrin retainer ring, protecting them from fingerprints and scratches. Cell mounted lenses are held in the LM1-R lens mount ring by a spring-loaded detent, allowing optics to be quickly removed and replaced. Additionally, polarization optics can be accurately rotated using graduations marked every 2°. LM1-R lens mounts can be post or pedestal mounted. The lens holder cells and lens mounts are sold separately.
Resources & Downloads
Other
LH1-1R RoHS Certificate(277.6 kB, PDF) LH1-1R_RoHS2021.pdf(679.8 kB, PDF)
2D Product Drawings
LH-R Optic Holder(243.2 kB, PDF)
