Optic Holder Cell, 0.25 in. Diameter Optics, Requires LM1-R Mount
Optic Holder Cell, 0.25 in. Diameter Optics, Requires LM1-R Mount
Model: LH1-0.25R
Product Series Overview

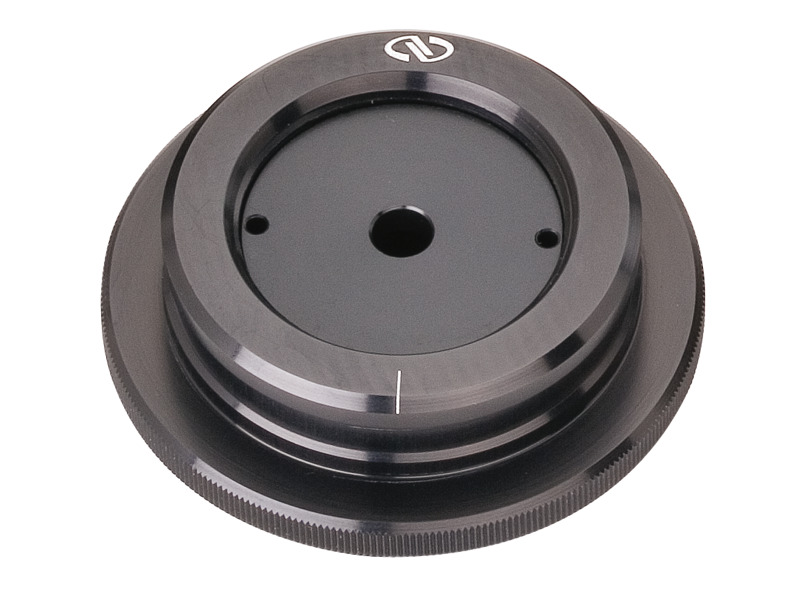

Nested Optic Rotation MountsThe LH1-0.25R Optic Holder Cell forms a convenient optical mounting system that speeds your experimental work. 0.25 inch (6.35 mm) lenses are mounted in a cell with a Delrin retainer ring, protecting them from fingerprints and scratches. Cell mounted lenses are held in the LM1-R lens mount ring by a spring-loaded detent, allowing optics to be quickly removed and replaced. Additionally, polarization optics can be accurately rotated using graduations marked every 2°. LM1-R lens mounts can be post or pedestal mounted. The lens holder cells and lens mounts are sold separately.
