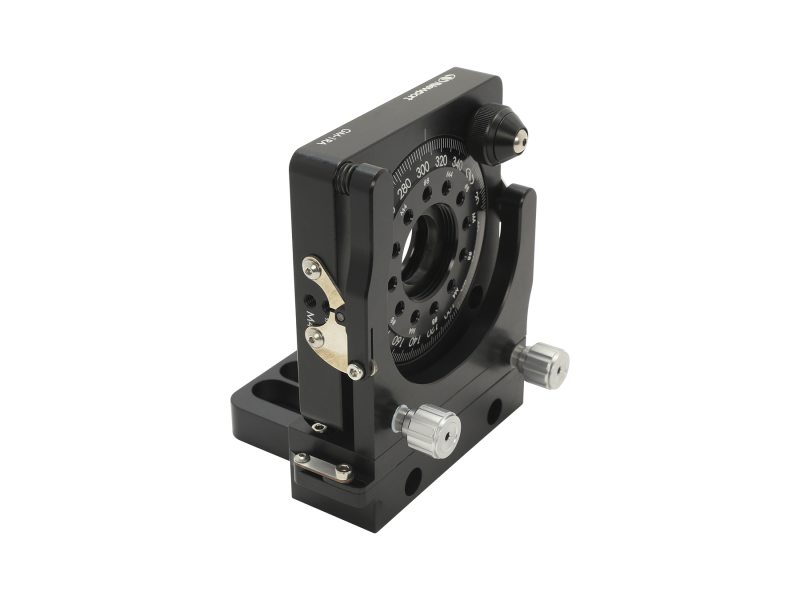

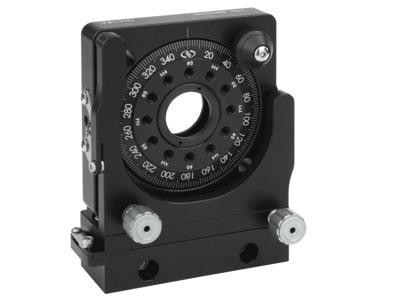

Optic Rotation Mount, Gimbal Tip-Tilt, 25.4 mm, 100 TPI

Technical Specs

  • Optic Diameter
    25.4 mm
  • Angular Range
    360°
  • Drive Type
    Adjustment Knob
  • Graduations
  • Sensitivity
    4.5 arc sec (Tip&Tilt)
    4 arc min (Rotation)
  • Optic Thickness
    8.0 mm
  • Clear Aperture
    19.1 mm
  • Drive Mechanism
    Gimbal
  • Tip
    ±5°
  • Tilt
    ±5°
  • Thread Type
    8-32 and M4
  • Material
    Aluminum
  • Bearings
    Ball
  • Retaining Ring
    A-1.25-1RR (Included)
  • Retaining Ring Thread
    1.063-20
